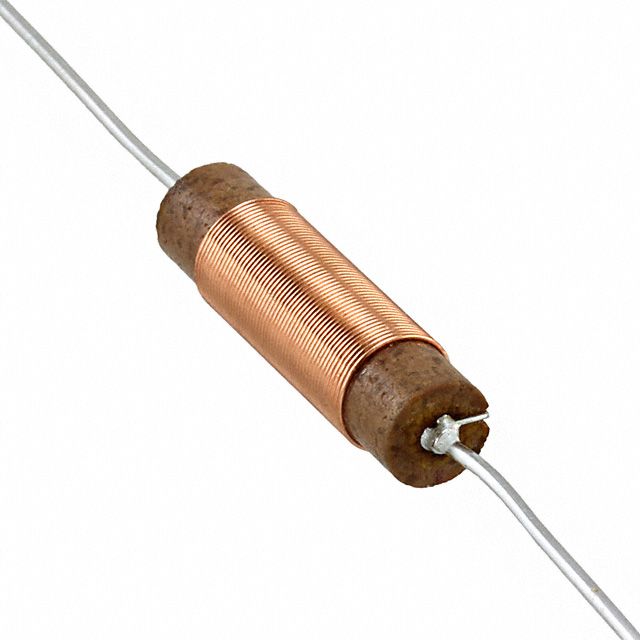

4604-RC
ActiveBourns Inc.
FIXED IND 1.5UH 1.8A 93 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4604-RC
ActiveBourns Inc.
FIXED IND 1.5UH 1.8A 93 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4604-RC |
|---|---|
| Current Rating (Amps) | 1.8 A |
| DC Resistance (DCR) [Max] | 93 mOhm |
| Frequency - Self Resonant | 149 MHz |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Phenolic |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Q @ Freq | 58, 7.96 MHz |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.27 in |
| Size / Dimension [diameter] | 6.86 mm |
| Size / Dimension [x] | 19.05 mm |
| Size / Dimension [x] | 0.75 in |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.28 | |
| 10 | $ 1.94 | |||
| 300 | $ 1.29 | |||
| 1200 | $ 1.14 | |||
| 5100 | $ 1.07 | |||
Description
General part information
4604 Series
1.5 µH Unshielded Wirewound Inductor 1.8 A 93mOhm Max Axial
