CLCBST-8-01

Active

Essentra Access Solutions

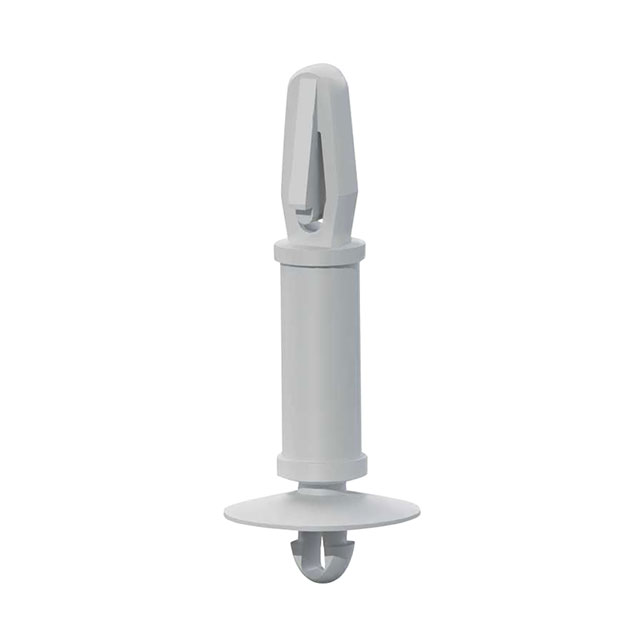

CBS CUP-DUAL TEARDROP 1/2"

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBS CUP-DUAL TEARDROP 1/2"

Technical Specifications

Parameters and characteristics for this part

Specification	CLCBST-8-01

Between Board Height	0.5 in
Between Board Height	12.7 mm
Between Board Height	0.5 in
Holding Type	Snap Lock
Material	Nylon
Mounting Hole Diameter [diameter]	2.54 mm
Mounting Hole Diameter [diameter]	0.1 in
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	2.54 mm
Support Hole Diameter [diameter]	0.1 in
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Material	Holding Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness
Essentra Access Solutions CLCBST-2-19	2.54 mm	0.1 in	0.125 in	3.18 mm	0.125 in	Snap Lock	Nylon	Snap Lock	0.125 in	0.125 in	3.18 mm
Essentra Access Solutions CLCBST-9-01	2.54 mm	0.1 in	0.5625 in	14.3 mm	0.563 in	Snap Lock	Nylon	Snap Lock	0.1 in		2.54 mm	0.062 in	0.0625 in	1.57 mm	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions CLCBST-7-01	2.54 mm	0.1 in	11.13 mm	0.4375 in	0.438 in	Snap Lock	Nylon	Snap Lock	0.1 in		2.54 mm	0.062 in	0.0625 in	1.57 mm	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions CLCBST-8-01	2.54 mm	0.1 in	0.5 in	12.7 mm	0.5 in	Snap Lock	Nylon	Snap Lock	0.1 in		2.54 mm	0.062 in	0.0625 in	1.57 mm	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions CLCBST-5-01	2.54 mm	0.1 in	0.3125 in	7.95 mm	0.313 "	Snap Lock	Nylon	Snap Lock	0.1 in		2.54 mm	0.062 in	0.0625 in	1.57 mm	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions CLCBST-4-01	2.54 mm	0.1 in	0.25 in	6.35 mm	0.25 in	Snap Lock	Nylon	Snap Lock	0.1 in		2.54 mm	0.062 in	0.0625 in	1.57 mm	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions CLCBST-10-01	2.54 mm	0.1 in	0.625 in	15.88 mm	0.625 in	Snap Lock	Nylon	Snap Lock	0.1 in		2.54 mm	0.062 in	0.0625 in	1.57 mm	0.0625 "	0.062 "	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Snap Lock Nylon 0.500" (12.70mm) 1/2"
