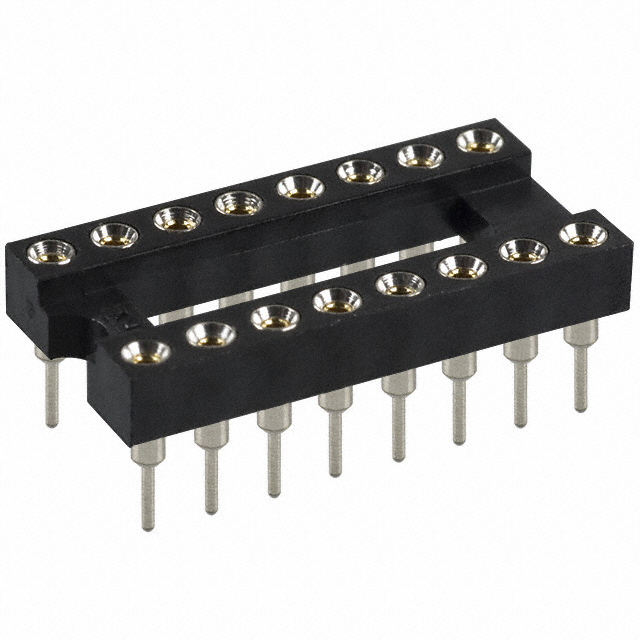

AR 16-HZL-TT
ActiveAssmann WSW Components
CONN IC DIP SOCKET 16POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR 16-HZL-TT
ActiveAssmann WSW Components
CONN IC DIP SOCKET 16POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR 16-HZL-TT |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Thermoplastic, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 16 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.13 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.51 | |||
| 2500 | $ 0.47 | |||
Description
General part information
AR 16-HZ Series
16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
