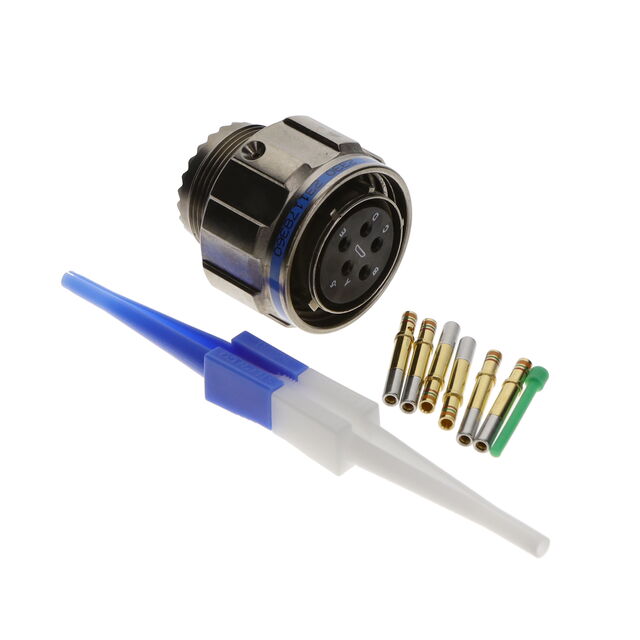

MS27467E15B5P
ActiveCorsair
PLUG STRAIGHT CABLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS27467E15B5P
ActiveCorsair
PLUG STRAIGHT CABLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS27467E15B5P | MS27467E15B Series |
|---|---|---|
| Applications | Military, Aerospace | Military, Aerospace, Aviation |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut | Coupling Nut |
| Grade | Military | Military |
| Ingress Protection | IP67 | IP67, Environment Resistant |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 18 - 37 |
| Operating Temperature [Max] | 200 °C | 200 - 347 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | N, A |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 Series I | MIL-DTL-38999 Series I |
| Shell Material | - | Aluminum |
| Shell Size - Insert | 15-5 | 15-5 |
| Shell Size - Insert | - | 18 - 35 |
| Shell Size - Insert | - | 15 |
| Shell Size, MIL | C | C |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
| Voltage Rating | - | 500 VAC |
MS27467E15B Series
PLUG STRAIGHT CABLE
| Part | Shielding | Fastening Type | Mounting Type | Ingress Protection | Orientation | Insert Material | Qualification | Shell Size, MIL | Features | Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Applications | Shell Size - Insert | Termination | Material Flammability Rating | Grade | Contact Finish - Mating | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Number of Positions | Voltage Rating | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Corsair MS27467E15B5P | Shielded | Bayonet Lock | Free Hanging (In-Line) | IP67 | N | Thermoplastic | MIL-DTL-38999 Series I | C | Coupling Nut | Olive Drab | Male Pins, Plug | -65 ░C | 200 °C | Metal | Aerospace, Military | 15-5 | Crimp | UL94 V-0 | Military | Gold | |||||
Corsair MS27467E15B18PA | Shielded | Bayonet Lock | Free Hanging (In-Line) | IP67 | A | Thermoplastic | MIL-DTL-38999 Series I | C | Coupling Nut | Olive Drab | Male Pins, Plug | -65 ░C | 200 °C | Metal | Aerospace, Military | Crimp | UL94 V-0 | Military | Gold | 18 | 15 | 18 | |||
Corsair MS27467E15B35P | Shielded | Bayonet Lock | Free Hanging (In-Line) | Environment Resistant | N | Coupling Nut | Olive Drab | Male Pins, Plug | -65 ░C | 347 °F | Metal | Aerospace, Aviation, Military | Crimp | UL94 V-0 | Gold | 35 | 15 | 37 | 500 VAC | Aluminum |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 5 | $ 62.12 | |
| 10 | $ 57.15 | |||
| 50 | $ 52.58 | |||
| 100 | $ 48.37 | |||
| 500 | $ 44.50 | |||
Description
General part information
MS27467E15B Series
5 Position Circular Connector Plug, Male Pins Crimp
