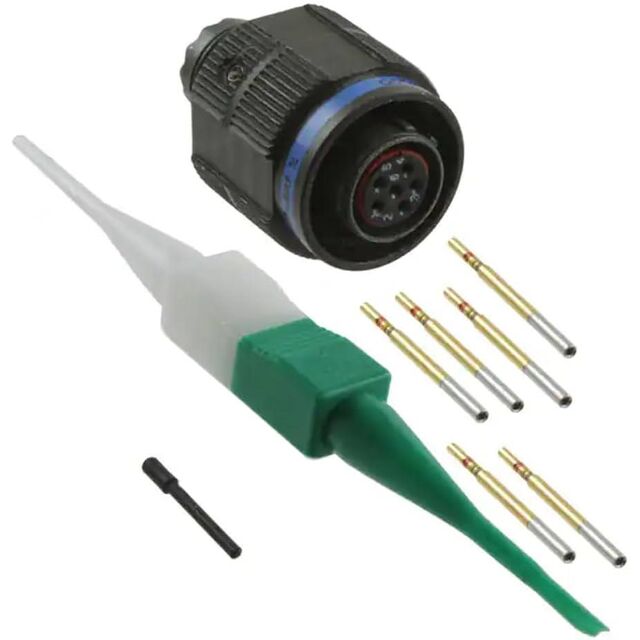

MS27467E15B18PA

Active

Corsair

PLUG STRAIGHT CABLE

Search across all available documentation for this part.

Active

Corsair

PLUG STRAIGHT CABLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MS27467E15B18PA	MS27467E15B Series

Applications	Military, Aerospace	Military, Aerospace, Aviation
Color	Olive Drab	Olive Drab
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut	Coupling Nut
Grade	Military	Military
Ingress Protection	IP67	IP67, Environment Resistant
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	18	18 - 37
Operating Temperature [Max]	200 °C	200 - 347 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	N, A
Primary Material	Metal	Metal
Qualification	MIL-DTL-38999 Series I	MIL-DTL-38999 Series I
Shell Material	-	Aluminum
Shell Size - Insert	-	15-5
Shell Size - Insert [Max]	18	18 - 35
Shell Size - Insert [Min]	15	15
Shell Size, MIL	C	C
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Voltage Rating	-	500 VAC

PLUG STRAIGHT CABLE

Part	Shielding	Fastening Type	Mounting Type	Ingress Protection	Orientation	Insert Material	Qualification	Shell Size, MIL	Features	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Applications	Shell Size - Insert	Termination	Material Flammability Rating	Grade	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Voltage Rating	Shell Material
Corsair MS27467E15B5P	Shielded	Bayonet Lock	Free Hanging (In-Line)	IP67	N	Thermoplastic	MIL-DTL-38999 Series I	C	Coupling Nut	Olive Drab	Male Pins, Plug	-65 ░C	200 °C	Metal	Aerospace, Military	15-5	Crimp	UL94 V-0	Military	Gold
Corsair MS27467E15B18PA	Shielded	Bayonet Lock	Free Hanging (In-Line)	IP67	A	Thermoplastic	MIL-DTL-38999 Series I	C	Coupling Nut	Olive Drab	Male Pins, Plug	-65 ░C	200 °C	Metal	Aerospace, Military		Crimp	UL94 V-0	Military	Gold	18	15	18
Corsair MS27467E15B35P	Shielded	Bayonet Lock	Free Hanging (In-Line)	Environment Resistant	N				Coupling Nut	Olive Drab	Male Pins, Plug	-65 ░C	347 °F	Metal	Aerospace, Aviation, Military		Crimp	UL94 V-0		Gold	35	15	37	500 VAC	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 215.07

General part information

18 Position Circular Connector Plug, Male Pins Crimp
