325320-05-0
ActiveCurtis Industries
CONN BARRIER STRIP 5CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325320-05-0 | 325320 Series |
|---|---|---|
| - | - | |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | Wire Wrap | Wire Wrap |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 5 | 5 - 23 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 5 | 5 - 19 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.69 | |
| 10 | $ 2.81 | |||
| 30 | $ 2.63 | |||
325320 Series
PLUGIN BARRIER TERMINAL BLOCKS ROHS
| Part | Number of Circuits | Terminal Screw Material | Top Termination | Number of Wire Entries | Voltage Rating | Number of Rows | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Material - Insulation | Terminal Block Type | Material Flammability Rating | Current Rating (Amps) | Pitch [x] | Pitch [x] | Bottom Termination | Operating Temperature | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325320-11-0 | |||||||||||||||||||
Curtis Industries 325320-15-0 | 15 | Steel | Screws | 15 | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C | |
Curtis Industries 325320-07-0 | 7 | Steel | Screws | 7 | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C | |
Curtis Industries 325320-23-0 | 23 | Steel | Screws | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C | 23 | |
Curtis Industries 325320-05-0 | 5 | Steel | Screws | 5 | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C | |
Curtis Industries 325320-11-0 | 11 | Steel | Screws | 11 | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C | |
Curtis Industries 325320-12-0 | 12 | Steel | Screws | 12 | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C | |
Curtis Industries 325320-10-0 | 10 | Steel | Screws | 10 | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C | |
Curtis Industries 325320-19-0 | 19 | Steel | Screws | 19 | 300 VDC | 1 | Through Hole | 14 AWG | 22 AWG | 3 Wall (Tri) | Polypropylene (PP) | Barrier Block | UL94 V-0 | 15 A | 8.26 mm | 0.325 in | Wire Wrap | 105 C |
Description
General part information
325320 Series

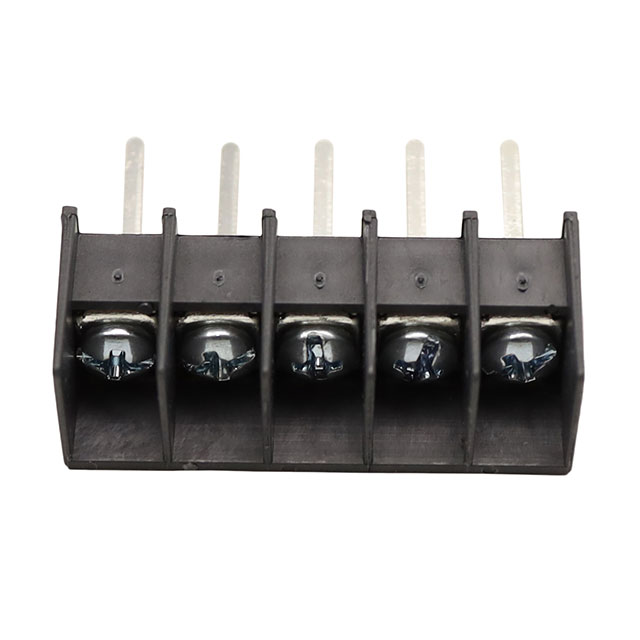

5 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
