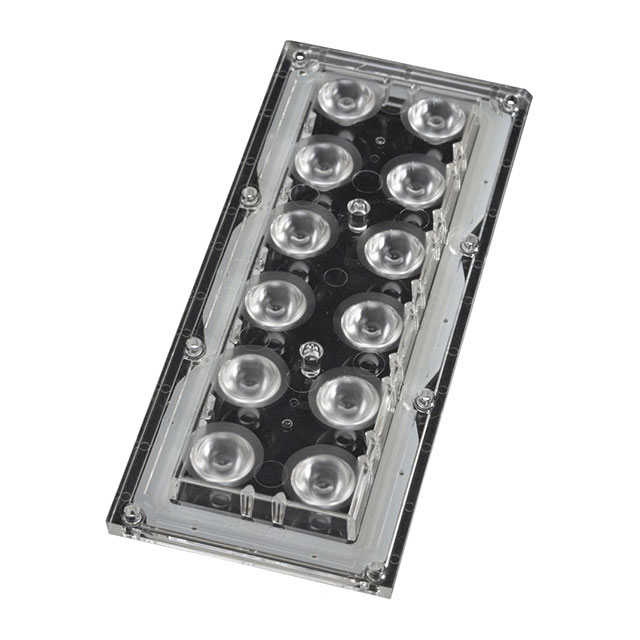

CS14891_HB-IP-2X6-M
ActiveASSEMBLY RECTANG 12 POS 173 + 71,4MM (D)/ FOAM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
CS14891_HB-IP-2X6-M
ActiveASSEMBLY RECTANG 12 POS 173 + 71,4MM (D)/ FOAM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CS14891_HB-IP-2X6-M |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | LG Innotek, Lumileds, Osram, Seoul, Nichia, Cree |
| Lens Size [x] | 173 mm |
| Lens Size [y] | 71.4 mm |
| Lens Style | Rectangle with Flat Top |
| Material | Acrylic |
| Mounting Type | Screw |
| Number of LEDs | 12 |
| Optical Pattern | Medium |
| Type | Lens |
| Viewing Angle [Max] | 39 ° |
| Viewing Angle [Min] | 24 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CS14891 Series
New high power HB-2X2 versions optimized for Cree XM-L and XP-L LEDs. With luminous flux over 4000 lm per optics module, new HB-2X2 family takes high bay lighting to a completely new level. Newly designed TIR lenses are optimized for uniform illumination and high efficiency. And like the rest of LEDiL’s high bay optics, they are DLC compliant too.
