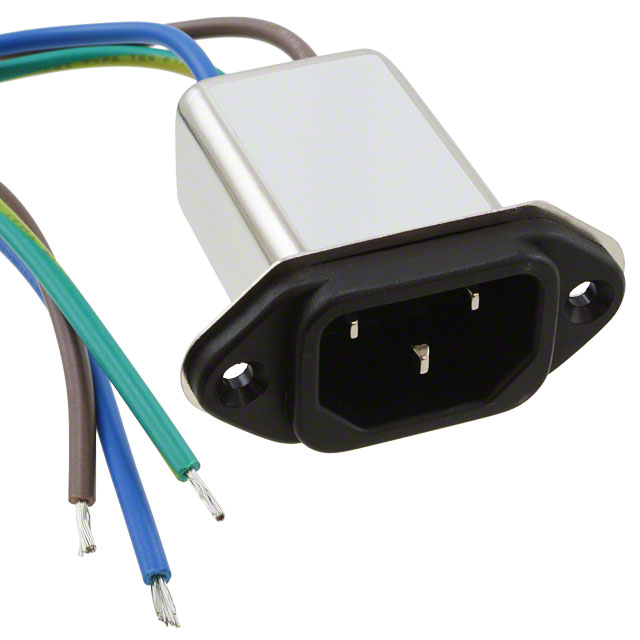

15GEEW3E

Active

Delta Electronics

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 15A ST 1 PORT

Search across all available documentation for this part.

Active

Delta Electronics

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 15A ST 1 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15GEEW3E	15GEEW Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A	15 A
Current Rating - Filter	15 A	15 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm	28.45 mm
Panel Cutout Dimensions [y]	21.6 mm	21.6 mm
Termination	Wire Leads	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Termination	Connector Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Current Rating - Appliance Inlet	Approval Agency	Current Rating - Filter	Connector Style	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Accomodates a Fuse
Delta Electronics 15GEEW3EM	Wire Leads	Male Blades, Receptacle	Flange, Panel Mount	21.6 mm	28.45 mm	Filtered (EMI, RFI) - Commercial, Medical	15 A	CSA, UL, VDE	15 A	IEC 320-C14	115 VAC	250 VAC
Delta Electronics 15GEEW3E	Wire Leads	Male Blades, Receptacle	Flange, Panel Mount	21.6 mm	28.45 mm	Filtered (EMI, RFI) - Commercial	15 A	CSA, UL, VDE	15 A	IEC 320-C14	115 VAC	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
