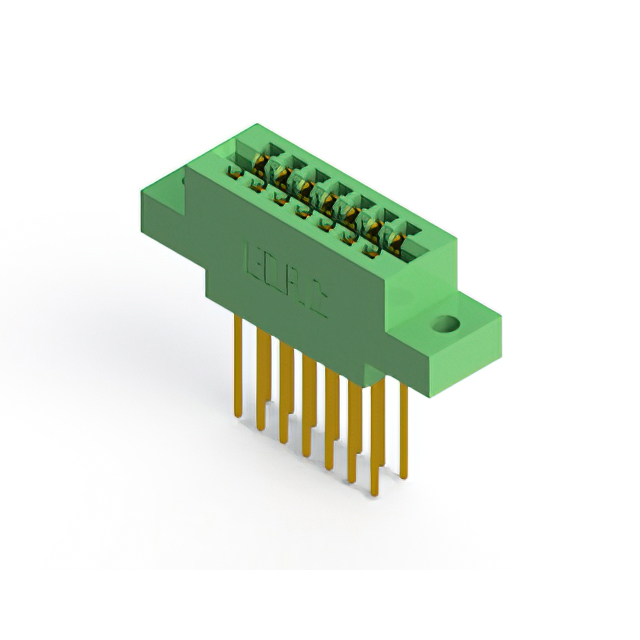

317-014-542-804

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

317-014-542-804

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	317-014-542-804

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	14
Number of Positions/Bay/Row [custom]	7
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap

317-014 Series

Part	Number of Rows	Material - Insulation	Color	Termination	Number of Positions	Contact Material	Read Out	Number of Positions/Bay/Row [custom]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Card Type	Contact Finish	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Features
EDAC Inc. 317-014-542-803	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	14	Copper Alloy	Dual	7	Cantilever	125 °C	-65 ░C	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm
EDAC Inc. 317-014-542-802	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	14	Copper Alloy	Dual	7	Cantilever	125 °C	-65 ░C				Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm
EDAC Inc. 317-014-540-803	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	14	Copper Alloy	Dual	7	Cantilever	125 °C	-65 ░C	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm
EDAC Inc. 317-014-541-678	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	28	Copper Alloy	Single	14	Cantilever	125 °C	-65 ░C		4-40 Threaded Insert Top Mount Opening		Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Card Guides
EDAC Inc. 317-014-542-804	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	14	Copper Alloy	Dual	7	Cantilever	125 °C	-65 ░C	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm
EDAC Inc. 317-014-542-878	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	14	Copper Alloy	Dual	7	Cantilever	125 °C	-65 ░C		4-40 Threaded Insert Top Mount Opening		Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Card Guides
EDAC Inc. 317-014-541-607	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	28	Copper Alloy	Single	14	Cantilever	125 °C	-65 ░C		M3 Threaded Insert Top Mount Opening		Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm
EDAC Inc. 317-014-540-807	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	14	Copper Alloy	Dual	7	Cantilever	125 °C	-65 ░C		M3 Threaded Insert Top Mount Opening		Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm
EDAC Inc. 317-014-541-604	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	28	Copper Alloy	Single	14	Cantilever	125 °C	-65 ░C	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm
EDAC Inc. 317-014-542-808	2	Diallyl Phthalate (DAP)	Green	Wire Wrap	14	Copper Alloy	Dual	7	Cantilever	125 °C	-65 ░C		4-40 Threaded Insert Top Mount Opening		Through Hole	Non Specified - Dual Edge	Gold	Female	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 23.67

Description

General part information

317-014 Series

14 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources
