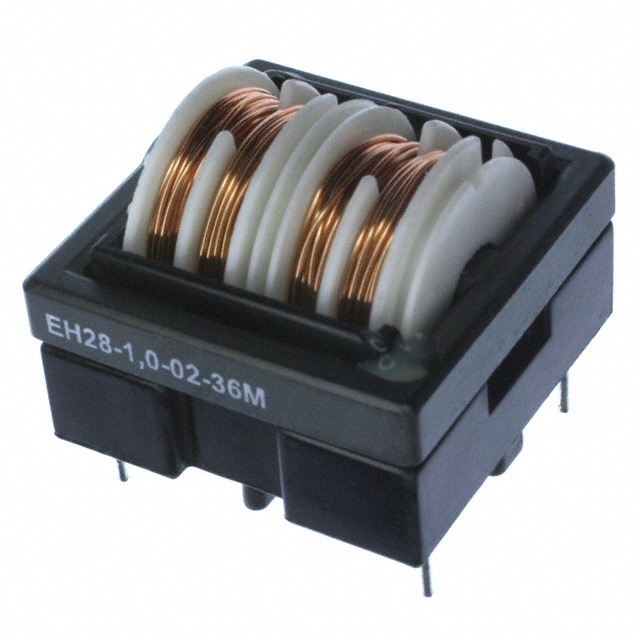

EH28-1.0-02-36M

Active

TE Connectivity Raychem Cable Protection

CMC 36MH 1A 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 36MH 1A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EH28-1.0-02-36M

Current Rating (Max) [Max]	1 A
DC Resistance (DCR) (Max)	591 mOhm
Filter Type	Power Line
Height (Max)	23.9 mm
Height (Max) [Max]	0.941 in
Inductance @ Frequency	36 mH, 400 Hz
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	1.102 in
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Size / Dimension [y]	1.102 in
Voltage Rating - AC	250 V

Part	Current Rating (Max) [Max]	Package / Case	Package / Case	Voltage Rating - AC	Filter Type	Number of Lines	Operating Temperature [custom]	Height (Max)	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	DC Resistance (DCR) (Max)
TE Connectivity Raychem Cable Protection EH28-1.0-02-75M-X	1 A	Horizontal	4 Lead	250 V	Power Line	2	-25 °C 100 °C	23.9 mm	0.941 in	28 mm	1.102 in	28 mm	1.102 in	Through Hole	75 mH 400 Hz	880 mOhm
TE Connectivity Raychem Cable Protection EH28-1.0-02-36M	1 A	Horizontal	4 Lead	250 V	Power Line	2	-25 °C 100 °C	23.9 mm	0.941 in	28 mm	1.102 in	28 mm	1.102 in	Through Hole	36 mH 400 Hz		591 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 2.13

General part information

36 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 1A DCR 591mOhm (Typ)
