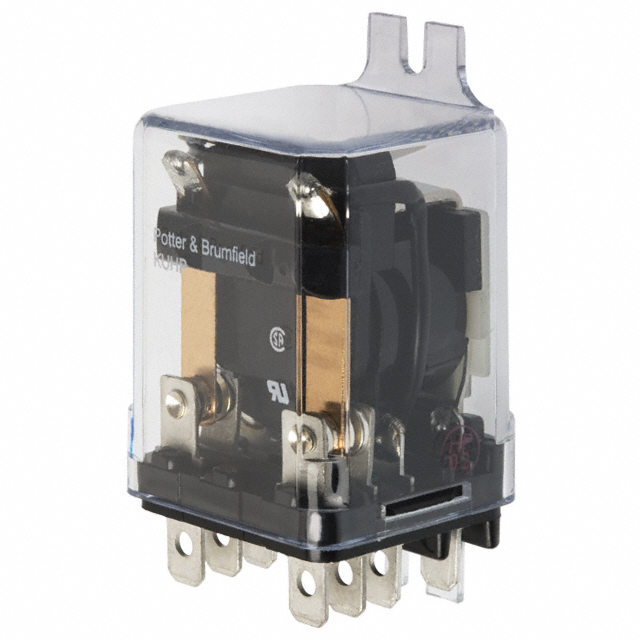

KUHP-5A51-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 30A 120V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 30A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	KUHP-5A51-120

Approval Agency	CSA, UR
Coil Current	24 mA
Coil Insulation	Class B
Coil Resistance	1.7 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	30 A
Load - Max Switching [Max]	7200 VA
Mounting Type	Chassis Mount
Must Operate Voltage	102 VAC
Operate Time	20 ms
Operating Temperature [Max] [custom]	45 °C
Operating Temperature [Min] [custom]	-45 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	240 VAC
Termination Style	Quick Connect - 0.250" (6.3mm)

Part	Release Time	Coil Type	Approval Agency	Mounting Type	Contact Material	Coil Current	Coil Resistance	Termination Style	Coil Insulation	Contact Form	Relay Type	Must Operate Voltage	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Load - Max Switching [Max]	Coil Voltage	Operate Time	Contact Rating (Current)	Switching Voltage
TE Connectivity Potter & Brumfield Relays KUHP-5A17-120	20 ms	Non Latching	CSA UR	Through Hole	Silver Cadmium Oxide (AgCdO)	24 mA	1.7 kOhms	PC Pin	Class B	SPDT (1 Form C)	General Purpose	102 VAC	45 °C	-45 °C	7200 VA	120 VAC	20 ms	30 A	240 VAC
TE Connectivity Potter & Brumfield Relays KUHP-5A51-120	20 ms	Non Latching	CSA UR	Chassis Mount	Silver Cadmium Oxide (AgCdO)	24 mA	1.7 kOhms	Quick Connect - 0.250" (6.3mm)	Class B	SPDT (1 Form C)	General Purpose	102 VAC	45 °C	-45 °C	7200 VA	120 VAC	20 ms	30 A	240 VAC
TE Connectivity Potter & Brumfield Relays KUHP-5A51-240	20 ms	Non Latching	CSA UR	Chassis Mount	Silver Cadmium Oxide (AgCdO)	12 mA	7.2 kOhms	Quick Connect - 0.250" (6.3mm)	Class B	SPDT (1 Form C)	General Purpose	204 VAC	45 °C	-45 °C	7200 VA	240 VAC	20 ms	30 A	240 VAC
TE Connectivity Potter & Brumfield Relays KUHP-5A51-277	20 ms	Non Latching	CSA UR	Chassis Mount	Silver Cadmium Oxide (AgCdO)	27 mA	10.25 kOhms	Quick Connect - 0.250" (6.3mm)	Class B	SPDT (1 Form C)	General Purpose		45 °C	-45 °C	7200 VA	277 VAC	20 ms	30 A	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount
