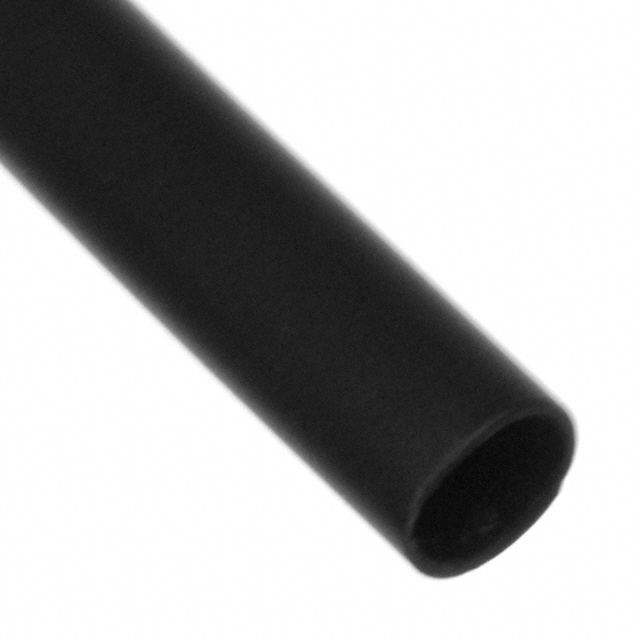

Q5-2X-3/16-01-QB48IN-25

Active

Qualtek

HEATSHRINK 3/16" X 4' BLK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 3/16" X 4' BLK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-2X-3/16-01-QB48IN-25

Color	Black
Features	Self Extinguishing, Adhesive Lined
Inner Diameter - Recovered [diameter]	2.41 mm
Inner Diameter - Recovered [diameter]	0.095 in
Inner Diameter - Supplied [diameter]	4.75 mm
Inner Diameter - Supplied [diameter]	0.187 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Recovered Wall Thickness	0.71 mm
Recovered Wall Thickness	0.028 "
Shelf Life	60 Months
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Color	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Features	Shrinkage Ratio	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Length	Length	Length	Length	Length [x]	Length [x]
Qualtek Q5-2X-3/16-01-SS100M	2.41 mm	0.095 in	4.75 mm	0.187 in	125 °C	-45 °C	Tubing Flexible	Black	100 °C	0.71 mm	0.028 "	Adhesive Lined Self Extinguishing	2 to 1	60 Months	-50 °F -10 °C	40 °C	Polyolefin (PO)	100 m	328.1 ft
Qualtek Q5-2X-3/16-01-QB6IN-24	2.41 mm	0.095 in	4.75 mm	0.187 in	125 °C	-45 °C	Tubing Flexible	Black	100 °C	0.71 mm	0.028 "	Adhesive Lined Self Extinguishing	2 to 1	60 Months	-50 °F -10 °C	40 °C	Polyolefin (PO)	152.4 mm		6 "	0.5 '
Qualtek Q5-2X-3/16-01-QB48IN-25	2.41 mm	0.095 in	4.75 mm	0.187 in	125 °C	-45 °C	Tubing Flexible	Black	100 °C	0.71 mm	0.028 "	Adhesive Lined Self Extinguishing	2 to 1	60 Months	-50 °F -10 °C	40 °C	Polyolefin (PO)					1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.187" (4.75mm) 2 to 1 Black 4.00' (1.22m)
