Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2909671 | 29096 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE, cULus, DNV, UL, EAC |
| Coil Current | 15.3 mA | 3.2 - 15.3 mA |
| Coil Resistance | 784.314 Ohms | 2.182 - 784.314 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPST-NO (1 Form A), SPDT (1 Form C) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A | 6 - 50 A |
| Features | Socket Included, Diode, Lighted Indicator | Lighted Indicator, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Must Operate Voltage | 9.7 VDC | 9.7 - 179.4 VAC/DC |
| Operate Time | 5 ms | 5 - 7 ms |
| Operating Temperature [Max] | 60 °C | 55 - 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 8 - 15 ms |
| Seal Rating | - | Sealed - Fully |
| Switching Voltage | 250 VAC, 250 VDC | 30 - 250 VAC |
| Termination Style | Spring Terminal | Spring Terminal |
29096 Series
RELAY MODULE, SPST, 0.05A, 30V, SOCKET
| Part | Mounting Type | Relay Type | Contact Form | Coil Voltage | Operate Time | Approval Agency | Release Time | Switching Voltage | Contact Material | Features | Coil Type | Contact Rating (Current) | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Coil Resistance | Must Operate Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2909680 | DIN Rail | General Purpose | SPST-NO (1 Form A) | 230 VAC | 7 ms | CE, UKCA | 15 ms | 250 VAC, 250 VDC | Gold (Au), Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 55 °C | 3.2 mA | 71.875 kOhms | ||
Phoenix Contact 2909673 | DIN Rail | General Purpose | SPDT (1 Form C) | 24 VAC | 6 ms | CE, UKCA | 15 ms | 250 VAC, 250 VDC | Gold (Au), Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 60 °C | 11 mA | 2.182 kOhms | 19.4 VAC/DC | |
Phoenix Contact 2909669 | DIN Rail | General Purpose | SPDT (1 Form C) | 120 VAC, 120 VDC | 6 ms | CE, UKCA | 15 ms | 250 VAC, 250 VDC | Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 55 °C | 3.5 mA | 34.29 kOhms | Sealed - Fully | |
Phoenix Contact 2909672 | DIN Rail | General Purpose | SPDT (1 Form C) | 24 VDC | 5 ms | CE, UKCA | 8 ms | 250 VAC, 250 VDC | Gold (Au), Silver Tin Oxide (AgSnO) | Diode, Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 60 °C | 9 mA | 2.667 kOhms | 18.5 VDC | |
Phoenix Contact 2909670 | DIN Rail | General Purpose | SPDT (1 Form C) | 230 VAC | 7 ms | CE, UKCA | 15 ms | 250 VAC, 250 VDC | Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 55 °C | 3.2 mA | 71.875 kOhms | Sealed - Fully | |
Phoenix Contact 2909668 | DIN Rail | General Purpose | SPDT (1 Form C) | 24 VAC | 6 ms | CE, UKCA | 15 ms | 250 VAC, 250 VDC | Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 60 °C | 11 mA | 2.182 kOhms | 19.4 VAC/DC | Sealed - Fully |
Phoenix Contact 2909671 | DIN Rail | General Purpose | SPDT (1 Form C) | 12 VDC | 5 ms | CE, UKCA | 8 ms | 250 VAC, 250 VDC | Gold (Au), Silver Tin Oxide (AgSnO) | Diode, Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 60 °C | 15.3 mA | 784.314 Ohms | 9.7 VDC | |
Phoenix Contact 2909676 | DIN Rail | General Purpose | SPDT (1 Form C) | 230 VAC | 7 ms | cULus, DNV, EAC, UL | 15 ms | 30 VAC, 36 VDC | Gold (Au), Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | Non Latching | 50 mA | Spring Terminal | -40 °C | 55 °C | 3.2 mA | 71.875 kOhms | 179.4 VAC/DC | |
Phoenix Contact 2909674 | DIN Rail | General Purpose | SPDT (1 Form C) | 120 VAC, 120 VDC | 6 ms | CE, UKCA | 15 ms | 250 VAC, 250 VDC | Gold (Au), Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | Non Latching | 6 A | Spring Terminal | -40 °C | 55 °C | 3.5 mA | 34.29 kOhms | 93.6 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.90 | |
| 10 | $ 28.88 | |||
| 50 | $ 26.57 | |||
| 100 | $ 24.55 | |||
| 250 | $ 23.39 | |||
Description
General part information
29096 Series

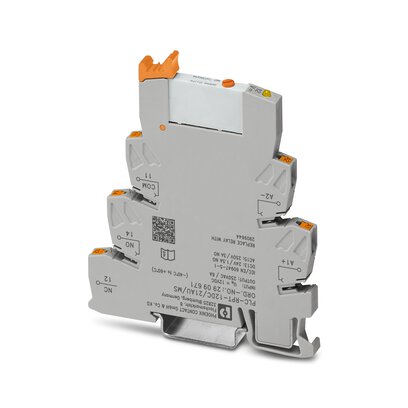

General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
