Phoenix Contact

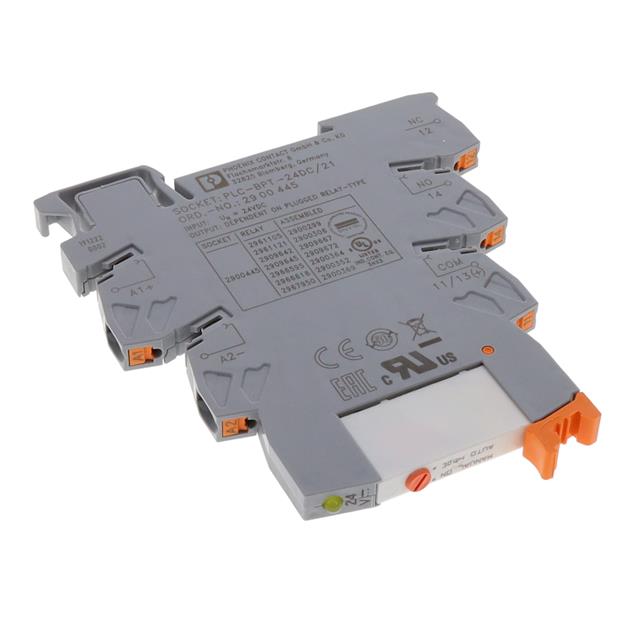

ELECTROMECHANICAL RELAY 24VDC 2.67KOHM 6A SPDT( (6.2MM 94MM 80MM)) DIN RAIL RELAY MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2909672

Active

Phoenix Contact

ELECTROMECHANICAL RELAY 24VDC 2.67KOHM 6A SPDT( (6.2MM 94MM 80MM)) DIN RAIL RELAY MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 30.90
Digikey	Bulk	1	$ 26.92

Description

General part information

29096 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2909672	29096 Series

Approval Agency	UKCA, CE	UKCA, CE, cULus, DNV, UL, EAC
Coil Current	9 mA	3.2 - 15.3 mA
Coil Resistance	2.667 kOhms	2.182 - 784.314 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 230 VAC
Contact Form	SPDT (1 Form C)	SPST-NO (1 Form A), SPDT (1 Form C)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A	6 - 50 A
Features	Socket Included, Diode, Lighted Indicator	Lighted Indicator, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	18.5 VDC	9.7 - 179.4 VAC/DC
Operate Time	5 ms	5 - 7 ms
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	8 ms	8 - 15 ms
Seal Rating	-	Sealed - Fully
Switching Voltage	250 VAC, 250 VDC	30 - 250 VAC
Termination Style	Spring Terminal	Spring Terminal

29096 Series

RELAY MODULE, SPST, 0.05A, 30V, SOCKET

Part	Mounting Type	Relay Type	Contact Form	Coil Voltage	Operate Time	Approval Agency	Release Time	Switching Voltage	Contact Material	Features	Coil Type	Contact Rating (Current)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Coil Resistance	Must Operate Voltage	Seal Rating
Phoenix Contact 2909680	DIN Rail	General Purpose	SPST-NO (1 Form A)	230 VAC	7 ms	CE, UKCA	15 ms	250 VAC, 250 VDC	Gold (Au), Silver Tin Oxide (AgSnO)	Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	55 °C	3.2 mA	71.875 kOhms
Phoenix Contact 2909673	DIN Rail	General Purpose	SPDT (1 Form C)	24 VAC	6 ms	CE, UKCA	15 ms	250 VAC, 250 VDC	Gold (Au), Silver Tin Oxide (AgSnO)	Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	60 °C	11 mA	2.182 kOhms	19.4 VAC/DC
Phoenix Contact 2909669	DIN Rail	General Purpose	SPDT (1 Form C)	120 VAC, 120 VDC	6 ms	CE, UKCA	15 ms	250 VAC, 250 VDC	Silver Tin Oxide (AgSnO)	Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	55 °C	3.5 mA	34.29 kOhms		Sealed - Fully
Phoenix Contact 2909672	DIN Rail	General Purpose	SPDT (1 Form C)	24 VDC	5 ms	CE, UKCA	8 ms	250 VAC, 250 VDC	Gold (Au), Silver Tin Oxide (AgSnO)	Diode, Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	60 °C	9 mA	2.667 kOhms	18.5 VDC
Phoenix Contact 2909670	DIN Rail	General Purpose	SPDT (1 Form C)	230 VAC	7 ms	CE, UKCA	15 ms	250 VAC, 250 VDC	Silver Tin Oxide (AgSnO)	Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	55 °C	3.2 mA	71.875 kOhms		Sealed - Fully
Phoenix Contact 2909668	DIN Rail	General Purpose	SPDT (1 Form C)	24 VAC	6 ms	CE, UKCA	15 ms	250 VAC, 250 VDC	Silver Tin Oxide (AgSnO)	Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	60 °C	11 mA	2.182 kOhms	19.4 VAC/DC	Sealed - Fully
Phoenix Contact 2909671	DIN Rail	General Purpose	SPDT (1 Form C)	12 VDC	5 ms	CE, UKCA	8 ms	250 VAC, 250 VDC	Gold (Au), Silver Tin Oxide (AgSnO)	Diode, Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	60 °C	15.3 mA	784.314 Ohms	9.7 VDC
Phoenix Contact 2909676	DIN Rail	General Purpose	SPDT (1 Form C)	230 VAC	7 ms	cULus, DNV, EAC, UL	15 ms	30 VAC, 36 VDC	Gold (Au), Silver Tin Oxide (AgSnO)	Lighted Indicator, Socket Included	Non Latching	50 mA	Spring Terminal	-40 °C	55 °C	3.2 mA	71.875 kOhms	179.4 VAC/DC
Phoenix Contact 2909674	DIN Rail	General Purpose	SPDT (1 Form C)	120 VAC, 120 VDC	6 ms	CE, UKCA	15 ms	250 VAC, 250 VDC	Gold (Au), Silver Tin Oxide (AgSnO)	Lighted Indicator, Socket Included	Non Latching	6 A	Spring Terminal	-40 °C	55 °C	3.5 mA	34.29 kOhms	93.6 VAC/DC
