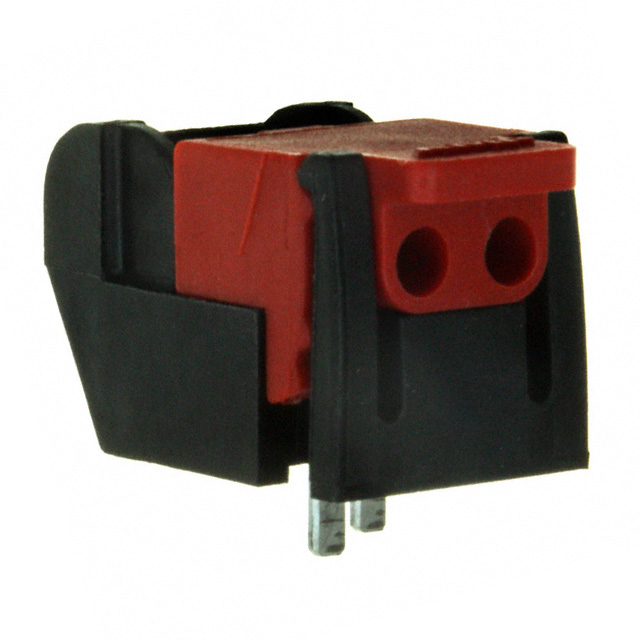

1339342-1

Active

TE Connectivity AMP Connectors

CONN WIRE IDC 2P 22-26AWG PCB RA

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN WIRE IDC 2P 22-26AWG PCB RA

Technical Specifications

Parameters and characteristics for this part

CONN WIRE IDC 2P 22-26AWG PCB RA

Part	Mounting Type	Number of Rows	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]	Color	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Number of Positions Loaded
TE Connectivity AMP Connectors 1339342-1	Through Hole, Right Angle	1	IDC	22 AWG	26 AWG	Black	Individual Wires	Tin	150 µin	150 Áin	2	Double Entry	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 Pair) Position Individual Wires Connector Black IDC 22-26 AWG Through Hole, Right Angle
