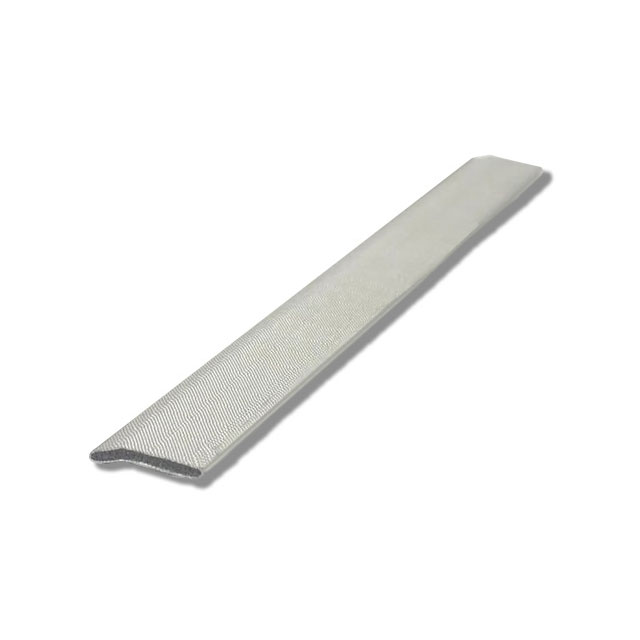

WS-3520-KF-2400

Active

3G Shielding Specialties LP

RFI FOF GASKET PU ADH

Search across all available documentation for this part.

Active

3G Shielding Specialties LP

RFI FOF GASKET PU ADH

Technical Specifications

Parameters and characteristics for this part

Specification	WS-3520-KF-2400

Attachment Method	Adhesive
Height [z]	4.06 mm
Height [z]	0.16 in
Length [x]	24 in
Length [x]	609.6 mm
Material	Polyurethane Foam, Nickel-Copper Polyester (NI/CU)
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-40 °C
Shape	Knife
Type	Fabric Over Foam
Width	15.24 mm
Width	0.6 in

RFI FOF GASKET PU ADH

Part	Width	Width	Type	Material	Attachment Method	Shape	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height [z]	Height [z]
3G Shielding Specialties LP WS-3520-KF-2400	15.24 mm	0.6 in	Fabric Over Foam	Nickel-Copper Polyester (NI/CU), Polyurethane Foam	Adhesive	Knife	24 in	609.6 mm	-40 °C	71 °C	4.06 mm	0.16 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFI FOF GASKET PU ADH

Technical documentation and resources

No documents available
