NSN1.50NY200

Active

Techflex

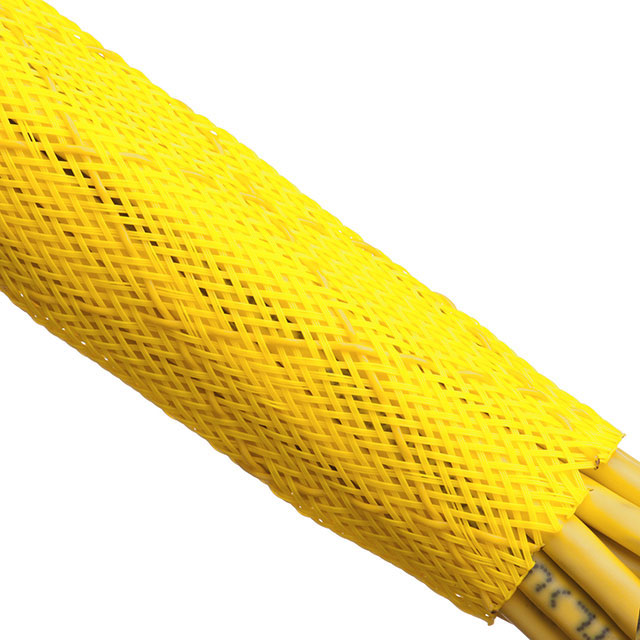

EXPAND SLEEV 1.5"X200' YLW/NEON

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEV 1.5"X200' YLW/NEON

Technical Specifications

Parameters and characteristics for this part

Specification	NSN1.50NY200

Abrasion Protection	Wear Resistant, Abrasion and Cut Resistant
Color	Yellow, Neon
Diameter - Inside, Expanded [diameter]	2 in
Diameter - Inside, Expanded [diameter]	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	1.5 in
Diameter - Inside, Non-Expanded [diameter]	38.1 mm
Features	Slip Resistant, Clean Cut
Length	60.96 m
Length	200 '
Material	Polyethylene Terephthalate (PET), Halogen Free
Operating Temperature [Max]	79 °C
Operating Temperature [Min]	-40 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.07 in
Wall Thickness	1.78 mm

Part	Type Attributes	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Wall Thickness	Wall Thickness	Type	Length	Length	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material
Techflex NSN1.50NY200	Expandable	Clean Cut Slip Resistant	1.5 in	38.1 mm	Neon Yellow	-40 °C	79 °C	0.07 in	1.78 mm	Sleeve	60.96 m	200 '	Abrasion and Cut Resistant Wear Resistant	2 in	50.8 mm	Polyethylene Terephthalate (PET) Halogen Free
Techflex NSN1.50BK200	Expandable	Clean Cut Slip Resistant	1.5 in	38.1 mm	Black	-40 °C	79 °C	0.07 in	1.78 mm	Sleeve	60.96 m	200 '	Abrasion and Cut Resistant Wear Resistant	2 in	50.8 mm	Polyethylene Terephthalate (PET) Halogen Free

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 187.02

General part information

Sleeve X 200' (60.96m) Yellow, Neon

Technical documentation and resources
