1318757-1

Active

TE Connectivity AMP Connectors

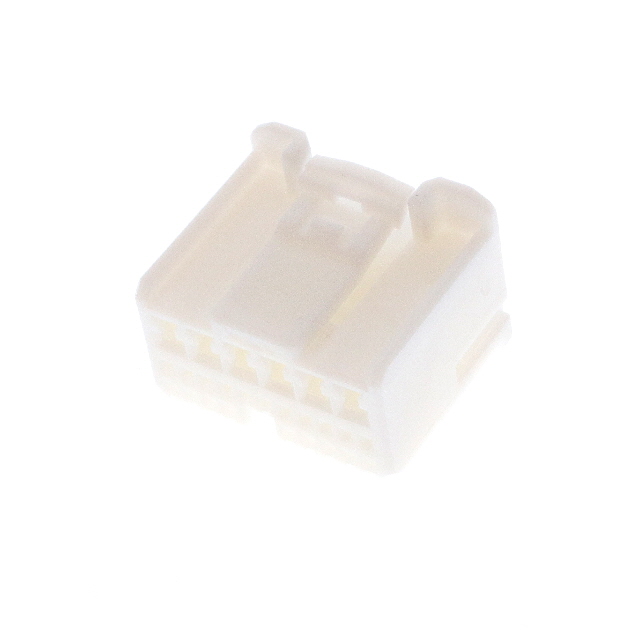

CONN PLUG HSG 26POS 2.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 26POS 2.20MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1318757-1	1318757 Series

Color	Natural	Natural, Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	26	26
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch [x]	0.087 in	0.087 in
Pitch [x]	2.2 mm	2.2 mm
Row Spacing [x]	0.118 in	0.118 in
Row Spacing [x]	3 mm	3 mm

CONN PLUG HSG 26POS 2.20MM

Part	Contact Termination	Mounting Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing [x]	Color	Number of Positions	Number of Rows	Contact Type	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Insulation Material
TE Connectivity AMP Connectors 1318757-1	Crimp	Free Hanging (In-Line)	0.087 in	2.2 mm	0.118 in	3 mm	Natural	26	2	Female Socket	Plug	Locking Ramp	-30 ░C	105 ░C	Contacts Not Included	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 1318757-2	Crimp	Free Hanging (In-Line)	0.087 in	2.2 mm	0.118 in	3 mm	Black	26	2	Female Socket	Plug	Locking Ramp	-30 ░C	105 ░C	Contacts Not Included	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Rectangular Connectors - Housings Plug Natural 0.087" (2.20mm)
