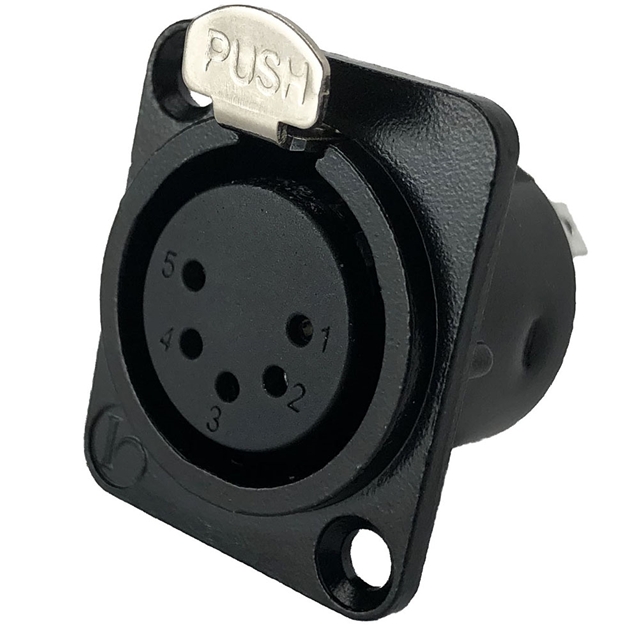

Specification	IO-XLR5-F-BK-JL

Applications	Audio, Video, Lighting Control, Medical
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Phosphor Bronze
Current Rating	7.5 A
Fastening Type	Latch Lock
Features	Ground
Insert Material	PA, Nylon, Polyamide
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	5
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	125 V

IO-XLR5 Series

Part	Number of Positions	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert	Mounting Type	Material Flammability Rating	Primary Material	Fastening Type	Color	Connector Type	Current Rating	Termination	Orientation	Contact Finish - Mating	Shell Material	Voltage Rating	Features	Mounting Feature	Applications	Contact Finish Thickness - Mating	Contact Material	Insert Material	Shell Finish	Backshell Material, Plating
IO Audio Technologies IO-XLR5-F-BH	5	Unshielded	-40 °C	70 °C	XLR	Panel Mount Right Angle Through Hole	UL94 HB	Plastic	Latch Lock	Black Silver	Female Sockets Receptacle	3 A	Solder	Keyed	Gold	Nylon Polyamide (PA)	50 V	Board Guide Board Lock Ground	Flange	Audio Lighting Control	1.97 µin	Brass	Nylon PA Polyamide
IO Audio Technologies IO-XLR5-F-EV	5	Unshielded			XLR	Panel Mount Through Hole		Plastic	Latch Lock	Black	Female Sockets Receptacle		Solder	Keyed	Gold	Nylon Polyamide (PA)		Board Guide Ground	Flange	Audio Lighting Control Medical Video		Brass	Nylon PA Polyamide
IO Audio Technologies IO-XLR5-M-JLX	5	Shielded			XLR	Panel Mount		Metal	Latch Lock	Silver	Male Pins Receptacle	7.5 A	Solder Cup	Keyed	Silver	Zinc Die Cast	125 V	Ground	Flange	Audio Lighting Control Medical Video		Phosphor Bronze	Nylon PA Polyamide	Nickel
IO Audio Technologies IO-XLR5-M-EV	5	Unshielded			XLR	Panel Mount Through Hole		Plastic	Latch Lock	Black	Male Pins Receptacle		Solder	Keyed	Gold	Nylon Polyamide (PA)		Board Guide Ground	Flange	Audio Lighting Control Medical Video		Brass	Nylon PA Polyamide
IO Audio Technologies IO-XLR5-F-EH	5	Unshielded			XLR	Panel Mount Right Angle Through Hole		Plastic	Latch Lock	Black	Female Sockets Receptacle		Solder	Keyed	Gold	Nylon Polyamide (PA)		Board Guide Board Lock Ground	Flange	Audio Lighting Control Medical Video		Brass	Nylon PA Polyamide
IO Audio Technologies IO-XLR5-M-BH	5	Unshielded	-40 °C	70 °C	XLR	Panel Mount Right Angle Through Hole	UL94 HB	Plastic	Latch Lock	Black Silver	Male Pins Receptacle	3 A	Solder	Keyed	Gold	Nylon Polyamide (PA)	50 V	Board Guide Board Lock Ground	Flange	Audio Lighting Control	1.97 µin	Brass	Nylon PA Polyamide
IO Audio Technologies IO-XLR5-F-BK	5	Unshielded			XLR	Free Hanging (In-Line)		Metal	Latch Lock	Black	Female Sockets Plug	7.5 A			Silver	Zinc Die Cast	1500 V	Backshell Strain Relief		Audio		Phosphor Bronze			Zinc Die Cast
IO Audio Technologies IO-XLR5-F-BK-JL	5	Shielded			XLR	Panel Mount		Metal	Latch Lock	Black	Female Sockets Receptacle	7.5 A	Solder Cup	Keyed	Silver	Zinc Die Cast	125 V	Ground	Flange	Audio Lighting Control Medical Video		Phosphor Bronze	Nylon PA Polyamide	Black
IO Audio Technologies IO-XLR5-M-BK-JL	5	Shielded			XLR	Panel Mount		Metal	Latch Lock	Black	Male Pins Receptacle	7.5 A	Solder Cup	Keyed	Silver	Zinc Die Cast	125 V	Ground	Flange	Audio Lighting Control Medical Video		Phosphor Bronze	Nylon PA Polyamide	Black
IO Audio Technologies IO-XLR5-M-EH	5	Unshielded			XLR	Panel Mount Right Angle Through Hole		Plastic	Latch Lock	Black	Male Pins Receptacle		Solder	Keyed	Gold	Nylon Polyamide (PA)		Board Guide Ground	Flange	Audio Lighting Control Medical Video		Brass	Nylon PA Polyamide
