3447/80

Active

3M (TC)

80001237488 3447/80-100=80/CAB/RC/TYP1/PVC/30AWG/SLD/.025/100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3447/80

Active

3M (TC)

80001237488 3447/80-100=80/CAB/RC/TYP1/PVC/30AWG/SLD/.025/100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3447/80

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	80
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL Style 20596
Ribbon Thickness	0.64 mm
Ribbon Thickness	0.025 in
Ribbon Width [y]	50.8 mm
Ribbon Width [y]	2 in
Shielding	Unshielded
Voltage	30 V
Wire Gauge	30 AWG

3447 Series

Part	Ribbon Width [y]	Ribbon Width [y]	Number of Conductors	Features	First Conductor Mark	Length [x]	Length [x]	Conductor Strand	Ratings	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Resistance	Pitch [x]	Pitch [x]	Cable Type	Voltage	Wire Gauge	Conductor Material	Shielding	Jacket Color	Length	Length	Ribbon Width	Ribbon Width	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width
3M (TC) 3447/60	38.1 mm	1.5 in	60	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray
3M (TC) 3447/30 300			30	Zippable	Red			Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray	91.44 m	300 ft	0.75 "	19.05 mm
3M (TC) 3447/80	50.8 mm	2 in	80	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray
3M (TC) 3447/80 300	50.8 mm	2 in	80	Zippable	Red			Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray	91.44 m	300 ft
3M (TC) 3447/20			20	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray					0.5 "	12.7 mm
3M (TC) 3447/10			10	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray			0.25 in	6.35 mm
3M (TC) 3447/16 300			16	Zippable	Red			Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray	91.44 m	300 ft	0.4 in	10.16 mm
3M (TC) 3447/34			34	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray			0.85 in	21.59 mm
3M (TC) 3447/30 100			30	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray			0.75 "	19.05 mm
3M (TC) 3447/40			40	Zippable	Red	100 ft	30.48 m	Solid	UL Style 20596	Poly-Vinyl Chloride (PVC)	0.64 mm	0.025 in	-20 C	105 ░C	10 GOhm	0.64 mm	0.025 in	Flat Cable	30 V	30 AWG	Copper Tinned	Unshielded	Gray				1 in			25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.24
		300	$ 2.86
		500	$ 2.58
		1000	$ 2.34
		2500	$ 2.06
		5000	$ 1.87
Newark	Spool of 100	1	$ 248.77
		10	$ 231.00
		25	$ 222.80
		50	$ 214.60
		100	$ 205.03

Description

General part information

3447 Series

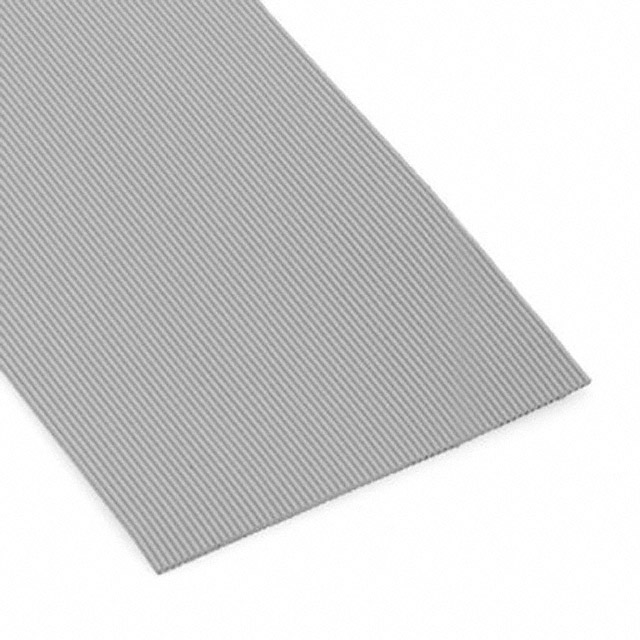

Flat Ribbon Cable Gray 80 Conductors 0.025" (0.64mm) Flat Cable 100.0' (30.48m)
