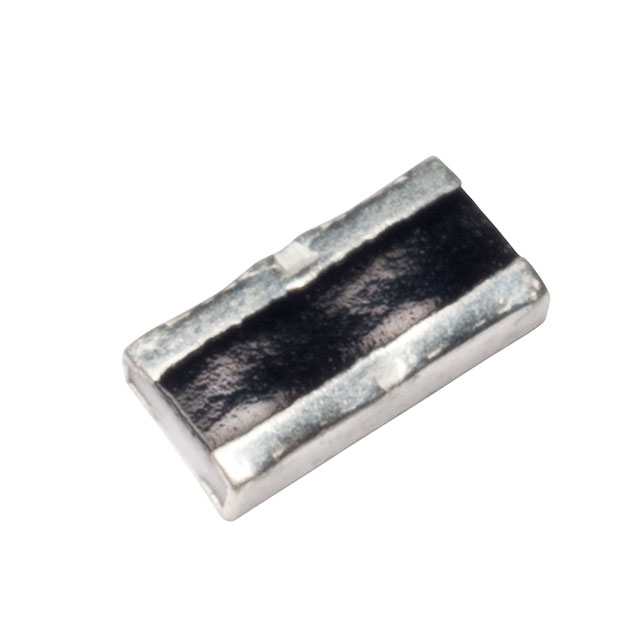

WU732BTTD47L0F

Active

KOA Speer Electronics, Inc.

RESISTOR WIDE TERMINAL THICKFILM

Deep-Dive with AI

Search across all available documentation for this part.

WU732BTTD47L0F

Active

KOA Speer Electronics, Inc.

RESISTOR WIDE TERMINAL THICKFILM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WU732BTTD47L0F	WU732B Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200, Moisture Resistant	Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Wide 1206 (3216 Metric), 0612	Wide 1206 (3216 Metric), 0612
Power (Watts)	1 W	1 - 1.5 W
Ratings	AEC-Q200	AEC-Q200
Resistance	47 mOhms	0.02 - 47 mOhms
Size / Dimension [x]	0.063 in, 1.6 mm	0.063 - 1.6 in
Size / Dimension [y]	0.126 in, 3.2 mm	0.126 - 3.2 in
Supplier Device Package	0612	0612
Temperature Coefficient	100 ppm/°C	75 - 100 ppm/°C
Tolerance	1 %	1 %

WU732B Series

RESISTOR WIDE TERMINAL THICKFILM

Part	Composition	Ratings	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Supplier Device Package	Tolerance	Number of Terminations	Temperature Coefficient
KOA Speer Electronics, Inc. WU732B15TTD16L0F	Thick Film	AEC-Q200	Automotive AEC-Q200, Moisture Resistant	0.7 mm	0.028 in	16 mOhms	155 °C	-55 °C	Wide 1206 (3216 Metric), 0612	0.126 in, 3.2 mm	0.063 in, 1.6 mm	1.5 W	0612	1 %	2	75 ppm/°C
KOA Speer Electronics, Inc. WU732BTTD15L0F	Thick Film	AEC-Q200	Automotive AEC-Q200, Moisture Resistant	0.7 mm	0.028 in	15 mOhms	155 °C	-55 °C	Wide 1206 (3216 Metric), 0612	0.126 in, 3.2 mm	0.063 in, 1.6 mm	1 W	0612	1 %	2	75 ppm/°C
KOA Speer Electronics, Inc. WU732BTTD25L0F	Thick Film	AEC-Q200	Automotive AEC-Q200, Moisture Resistant	0.7 mm	0.028 in	25 mOhms	155 °C	-55 °C	Wide 1206 (3216 Metric), 0612	0.126 in, 3.2 mm	0.063 in, 1.6 mm	1 W	0612	1 %	2	75 ppm/°C
KOA Speer Electronics, Inc. WU732BTTD43L0F	Thick Film	AEC-Q200	Automotive AEC-Q200, Moisture Resistant	0.7 mm	0.028 in	43 mOhms	155 °C	-55 °C	Wide 1206 (3216 Metric), 0612	0.126 in, 3.2 mm	0.063 in, 1.6 mm	1 W	0612	1 %	2	100 ppm/°C
KOA Speer Electronics, Inc. WU732B15TTD33L0F	Thick Film	AEC-Q200	Automotive AEC-Q200, Moisture Resistant	0.7 mm	0.028 in	33 mOhms	155 °C	-55 °C	Wide 1206 (3216 Metric), 0612	0.126 in, 3.2 mm	0.063 in, 1.6 mm	1.5 W	0612	1 %	2	100 ppm/°C
KOA Speer Electronics, Inc. WU732BTTD47L0F	Thick Film	AEC-Q200	Automotive AEC-Q200, Moisture Resistant	0.7 mm	0.028 in	47 mOhms	155 °C	-55 °C	Wide 1206 (3216 Metric), 0612	0.126 in, 3.2 mm	0.063 in, 1.6 mm	1 W	0612	1 %	2	100 ppm/°C
KOA Speer Electronics, Inc. WU732BTTD20L0F	Thick Film	AEC-Q200	Automotive AEC-Q200, Moisture Resistant	0.7 mm	0.028 in	0.02 Ohms	155 °C	-55 °C	Wide 1206 (3216 Metric), 0612	0.126 in, 3.2 mm	0.063 in, 1.6 mm	1 W	0612	1 %	2	75 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.71
	Digi-Reel®	1	$ 0.71
	Tape & Reel (TR)	5000	$ 0.12

Description

General part information

WU732B Series

47 mOhms ±1% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Automotive AEC-Q200, Moisture Resistant Thick Film

Documents

Technical documentation and resources

No documents available
