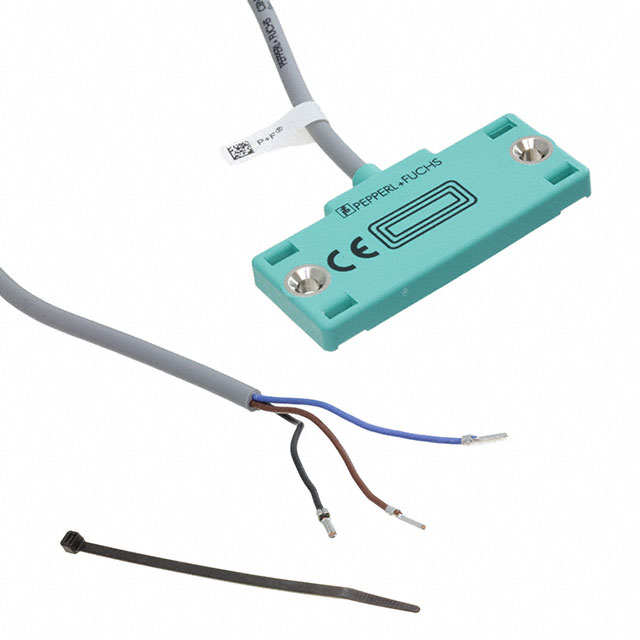

CBN10-F46-E2

Active

PEPPERL+FUCHS

CAPACITIVE PROXIMITY SENSOR, BASIC SERIES, FLAT, 10 MM, PNP-NO, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CBN10-F46-E2

Active

PEPPERL+FUCHS

CAPACITIVE PROXIMITY SENSOR, BASIC SERIES, FLAT, 10 MM, PNP-NO, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CBN10-F46-E2	CBN10 Series

Indicator [custom]	LED	LED
Ingress Protection	IP67	IP67
Material - Body	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	PNP-NO, 3-Wire	NPN-NO, 3-Wire, PNP-NO, 3-Wire
Package / Case	Flange Mount	Flange Mount
Sensing Distance	0.394 in	0.394 in
Sensing Distance	10 mm	10 mm
Sensor Type	Capacitive	Capacitive
Shielding	Unshielded	Unshielded
Termination Style	Cable	Cable
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

CBN10 Series

CAPACITIVE PROXIMITY SENSOR, BASIC SERIES, FLAT, 10 MM, NPN-NO, 10 TO 30 VDC, PRE-WIRED

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Package / Case	Indicator [custom]	Shielding	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material - Body	Output Type	Sensing Distance	Sensing Distance	Sensor Type
PEPPERL+FUCHS CBN10-F46-E0	30 VDC	10 VDC	Cable	Flange Mount	LED	Unshielded	IP67	70 °C	-25 °C	Polybutylene Terephthalate (PBT)	NPN-NO, 3-Wire	0.394 in	10 mm	Capacitive
PEPPERL+FUCHS CBN10-F46-E2	30 VDC	10 VDC	Cable	Flange Mount	LED	Unshielded	IP67	70 °C	-25 °C	Polybutylene Terephthalate (PBT)	PNP-NO, 3-Wire	0.394 in	10 mm	Capacitive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 127.11
		5	$ 116.17
		10	$ 115.20
		25	$ 111.23
		50	$ 106.48
Newark	Each	1	$ 186.49
		5	$ 159.04
		10	$ 152.58
		25	$ 145.32
		50	$ 133.21
		100	$ 114.64

Description

General part information

CBN10 Series

The CBN10-F46-E2 is a Capacitive Sensor which can be used to detect metal objects as well as nearly all other materials. The sensor is often used in applications including level, flow control for detection of liquids, grains and powders. Sensor features models with hazardous area approvals.
