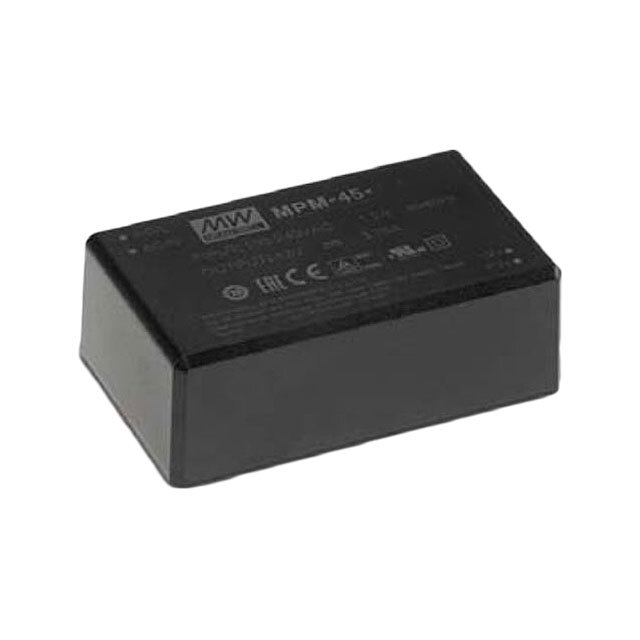

MPM-45-5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 40W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	MPM-45-5

Applications	Household Appliances, Medical
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output (Max) [Max]	8 A
Efficiency	88 %
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-30 °C
Package / Case	4-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	3.43 in
Size / Dimension [x]	87 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	29.5 mm
Size / Dimension [z]	1.16 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 113 VDC
Voltage - Output 1	5 V

Part	Approval Agency	Power (Watts)	Efficiency	Mounting Type	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Number of Outputs	Type	Voltage - Output 1	Line Regulation	Load Regulation	Applications
MEAN WELL USA Inc. MPM-45-5	CB CE cURus EAC TUV	40 W	88 %	Through Hole	4-DIP Module	29.5 mm	3.43 in	52 mm	87 mm	2.05 in	1.16 "	-30 °C	80 ¯C	80 VAC 113 VDC	264 VAC 370 VDC	8 A	1	Enclosed	5 V	0.5 %	1 %	Household Appliances Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 8A 80 ~ 264 VAC, 113 ~ 370 VDC Input
