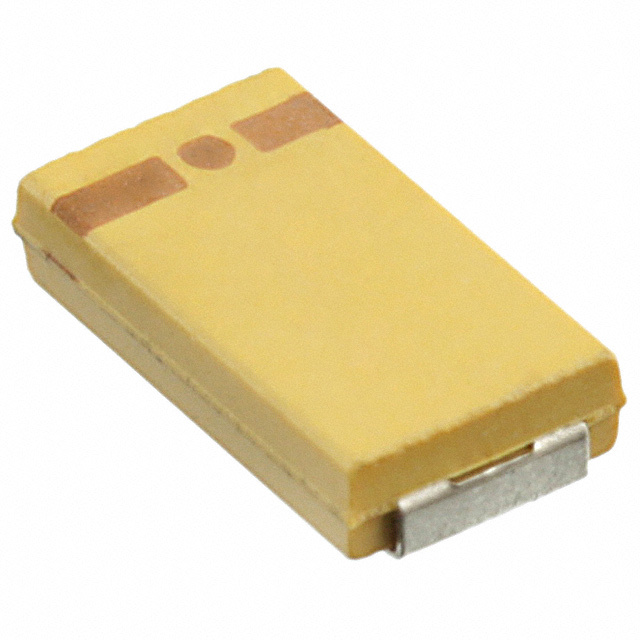

T494U106M016AH

Active

KEMET

CAP TANT SOLID 10UF 16V U CASE 20%( 6 X 3.2 X 1.4MM) INWARD L SMD 6032-15 1 OHM 125°C T/R

Search across all available documentation for this part.

Active

KEMET

CAP TANT SOLID 10UF 16V U CASE 20%( 6 X 3.2 X 1.4MM) INWARD L SMD 6032-15 1 OHM 125°C T/R

Technical Specifications

Parameters and characteristics for this part

Specification	T494U106M016AH

Capacitance	10 µF
ESR (Equivalent Series Resistance)	1 Ohms
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	U
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2311
Package / Case	6028 Metric
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	2.8 mm
Size / Dimension [y]	0.11 in
Tolerance	20 %
Type	Molded
Voltage - Rated	16 V

Part	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Tolerance	Package / Case	Package / Case	Mounting Type
KEMET T494U106M016AH	1 Ohms	2000 Hrs	U	2.8 mm	6 mm	0.236 in	0.11 in	-55 °C	125 °C	General Purpose	Molded	10 µF	1.5 mm	0.059 "	16 V	20 %	2311	6028 Metric	Surface Mount
KEMET T494U106K020AT	800 mOhm	2000 Hrs	U	2.8 mm	6 mm	0.236 in	0.11 in	-55 °C	125 °C	General Purpose	Molded	10 µF	1.5 mm	0.059 "	20 V	10 %	2311	6028 Metric	Surface Mount
KEMET T494U336K010AT	600 mOhm	2000 Hrs	U	2.8 mm	6 mm	0.236 in	0.11 in	-55 °C	125 °C	General Purpose	Molded	33 ÁF	1.5 mm	0.059 "	10 V	10 %	2311	6028 Metric	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF Molded Tantalum Capacitors 16 V 2311 (6028 Metric) 1Ohm
