Q-0I0460001003M

Active

Amphenol Custom Cable

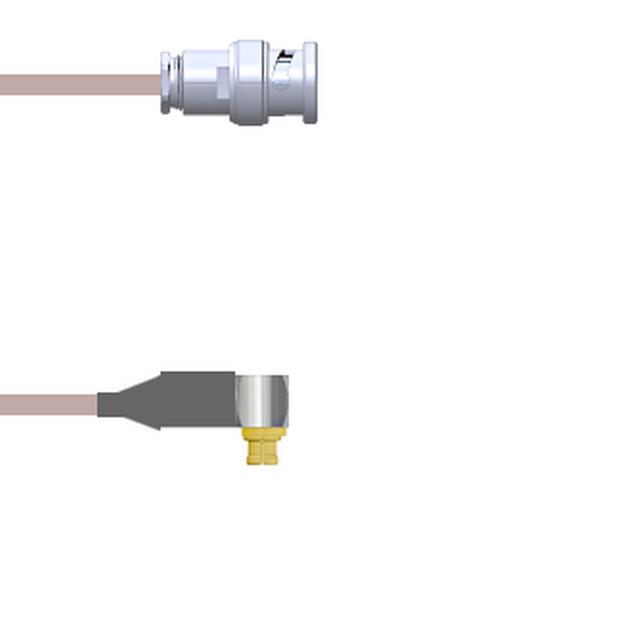

COAX CBL BNC TO SMPM 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I0460001003M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMPM 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I0460001003M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMPM Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	BNC to SMPM

Q-0I0460 Series

Part	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Type	Cable Type	Overall Impedance	Features	Style	Length	Length	2nd Contact Gender	Frequency - Max [Max]	1st Connector	1st Contact Gender	Color	Length
Amphenol Custom Cable Q-0I0460001036i	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	91.44 cm	36 in	Male	4 GHz	BNC Plug	Male	Copper
Amphenol Custom Cable Q-0I0460001012i	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	304.8 mm	12 "	Male	4 GHz	BNC Plug	Male	Copper
Amphenol Custom Cable Q-0I0460001001M	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	1 m	39.4 in	Male	4 GHz	BNC Plug	Male	Copper	3.3 ft
Amphenol Custom Cable Q-0I0460001003M	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	3 m	118.1 in	Male	4 GHz	BNC Plug	Male	Copper	9.8 '
Amphenol Custom Cable Q-0I0460001006i	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	152.4 mm	6 in	Male	4 GHz	BNC Plug	Male	Copper
Amphenol Custom Cable Q-0I0460001003i	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	76.2 mm	3 in	Male	4 GHz	BNC Plug	Male	Copper
Amphenol Custom Cable Q-0I0460001.75M	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	750 mm	29.53 "	Male	4 GHz	BNC Plug	Male	Copper
Amphenol Custom Cable Q-0I0460001048i	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	1200 mm	48 in	Male	4 GHz	BNC Plug	Male	Copper	4 ft
Amphenol Custom Cable Q-0I04600012.5M	Free Hanging (In-Line)	SMPM Plug Right Angle	Free Hanging (In-Line)	RG-178	50 Ohms	Shielded	BNC to SMPM	2.5 m	98.4 in	Male	4 GHz	BNC Plug	Male	Copper	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 142.90
		25	$ 140.10
		50	$ 137.31
		100	$ 134.52
		250	$ 131.72

Description

General part information

Q-0I0460 Series

Cable Assembly Coaxial BNC to SMPM RG-178 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
