745-146-525-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 146POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
745-146-525-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 146POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 745-146-525-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 146 |
| Number of Positions/Bay/Row | 73 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
745-146 Series
| Part | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Card Type | Number of Positions/Bay/Row | Pitch [x] | Pitch [x] | Termination | Mounting Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Material | Material - Insulation | Color | Number of Rows | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | 73 | 2.54 mm | 0.1 in | Press-Fit Wire Wrap | Through Hole | 146 | 0.76 Ám | 30 Áin | Gold | Copper Alloy | Polyester Thermoplastic | Black | 2 | Dual | -40 °C | 105 ░C | 2 |
EDAC Inc. | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | 73 | 2.54 mm | 0.1 in | Press-Fit | Through Hole | 146 | 0.76 Ám | 30 Áin | Gold | Copper Alloy | Polyester Thermoplastic | Black | 2 | Dual | -40 °C | 105 ░C | 2 |
EDAC Inc. | Cantilever Make Before Break | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | 73 | 2.54 mm | 0.1 in | Press-Fit | Through Hole | 146 | 0.76 Ám | 30 Áin | Gold | Copper Alloy | Polyester Thermoplastic | Black | 2 | Dual | -40 °C | 105 ░C | 2 |
EDAC Inc. | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | 73 | 2.54 mm | 0.1 in | Press-Fit | Through Hole | 146 | 0.76 Ám | 30 Áin | Gold | Copper Alloy | Polyester Thermoplastic | Black | 2 | Dual | -40 °C | 105 ░C | 2 |
EDAC Inc. | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | 73 | 2.54 mm | 0.1 in | Press-Fit | Through Hole | 146 | 0.76 Ám | 30 Áin | Gold | Copper Alloy | Polyester Thermoplastic | Black | 2 | Dual | -40 °C | 105 ░C | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
745-146 Series

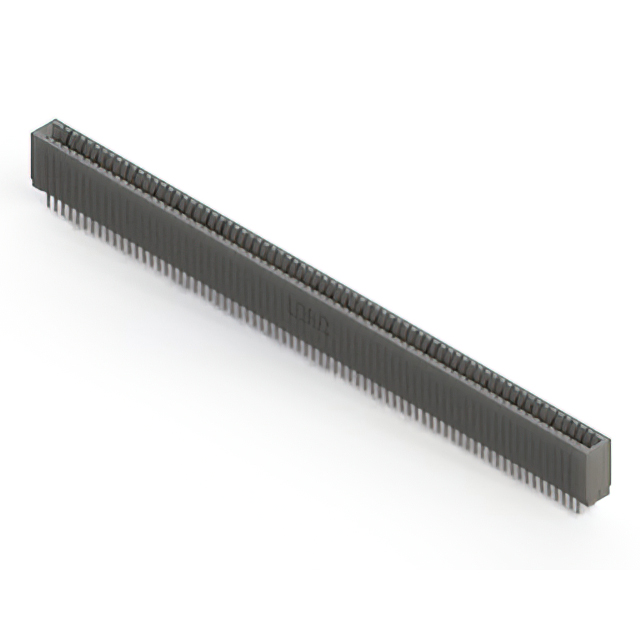

146 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
