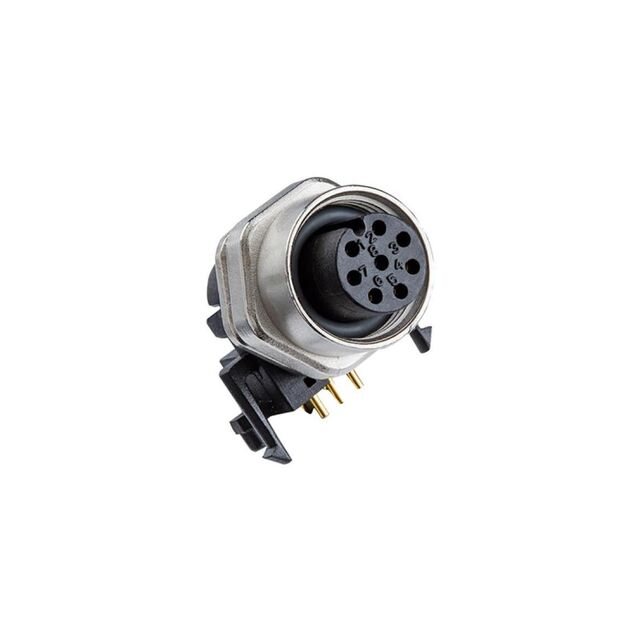

M12B-05PFFR-SF7003
ActiveAmphenol LTW
M12 CONN RA BCODE MATED IP
Deep-Dive with AI
Search across all available documentation for this part.
M12B-05PFFR-SF7003
ActiveAmphenol LTW
M12 CONN RA BCODE MATED IP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12B-05PFFR-SF7003 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
M12B-05PFFR Series
| Part | Ingress Protection | Shell Material | Features | Contact Material | Contact Finish - Mating | Current Rating (Amps) | Termination | Mounting Feature | Color | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Orientation | Primary Material | Shielding | Mounting Type | Insert Material | Connector Type | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | IP67 - Dust Tight Waterproof | Zinc Die Cast | Board Guide Board Lock | Copper Alloy | Gold | 4 A | Solder | Bulkhead - Front Side Nut | Silver | M12-5 | -40 °C | 105 ░C | 60 VDC | B | Metal | Unshielded | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | Female Sockets Plug | Nickel |
Amphenol LTW | IP68 - Dust Tight Waterproof | Zinc Alloy | Board Guide Board Lock | Copper Alloy | Gold | 4 A | Solder | Bulkhead - Front Side Nut | Silver | M12-5 | -40 °C | 105 ░C | 60 VDC | B | Metal | Unshielded | Panel Mount Right Angle Through Hole | Polyamide (PA) Nylon Glass Filled | Female Sockets Plug | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.16 | |
| 10 | $ 9.34 | |||
| 25 | $ 8.44 | |||
| 40 | $ 8.02 | |||
| 80 | $ 7.45 | |||
| 230 | $ 6.68 | |||
| 440 | $ 6.27 | |||
| 945 | $ 5.82 | |||
Description
General part information
M12B-05PFFR Series
5 Position Circular Connector Plug, Female Sockets Solder
Documents
Technical documentation and resources
No documents available
