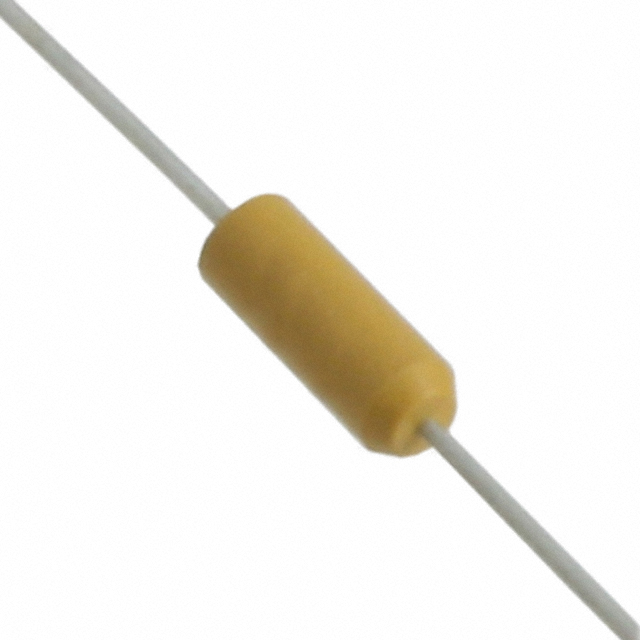

T322B155K035AT
ActiveKEMET
TANTALUM CAPACITOR, MOLDED, 1.5 ΜF, 35 V, ± 10%, PC PIN, 6 OHM
Deep-Dive with AI
Search across all available documentation for this part.
T322B155K035AT
ActiveKEMET
TANTALUM CAPACITOR, MOLDED, 1.5 ΜF, 35 V, ± 10%, PC PIN, 6 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T322B155K035AT |
|---|---|
| Capacitance | 1.5 µF |
| ESR (Equivalent Series Resistance) | 6 Ohms |
| Features | General Purpose |
| Manufacturer Size Code | B |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Size / Dimension [diameter] | 0.11 in, 2.79 mm |
| Size / Dimension [x] | 7.37 mm, 0.29 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T322B Series
1.5 µF Molded Tantalum Capacitors 35 V Axial 6Ohm
