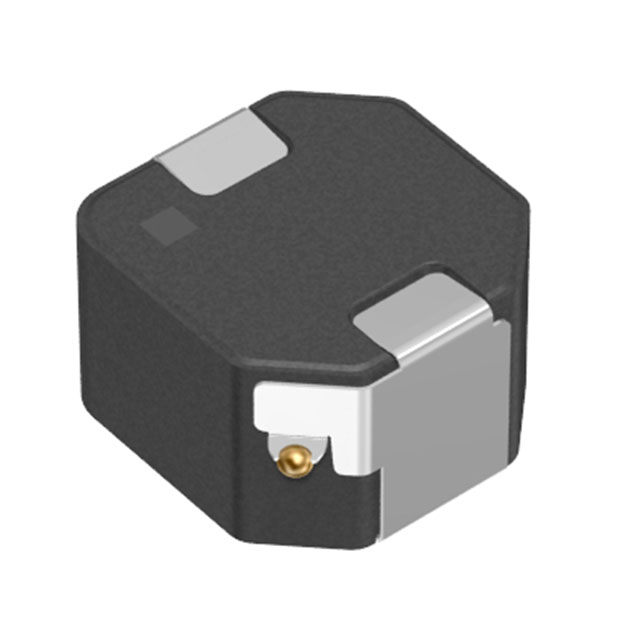

Specification	SPM6545VT-6R8M-D

Current - Saturation (Isat)	8.6 A
Current Rating	5.2 A
DC Resistance (DCR)	36 mOhm
Height - Seated (Max)	0.177 in
Inductance	6.8 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal Composite
Mounting Type	Surface Mount
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Package Name	6545
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.276 in
Size / Dimension Width	0.256 in
Tolerance	20 %
Type	Drum Core, Wirewound

SPM6545VT Series

Part	Current - Saturation (Isat)	Inductance	Height - Seated (Max)	Tolerance	Mounting Type	Inductance Frequency - Test	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Type	Ratings	DC Resistance (DCR)	Package Name	Current Rating	Material - Core	Shielding	Package / Case
TDK Corporation SPM6545VT-680M-D	2.9 A	68 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	340 mOhm	6545	1.7 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-330M-D	3.2 A	33 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	132 mOhm	6545	2.7 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-2R2M-D	14.3 A	2.2 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	10.4 mOhm	6545	9.8 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-6R8M-D	8.6 A	6.8 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	36 mOhm	6545	5.2 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-220M-D	3.9 A	22 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	94.6 mOhm	6545	3.2 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-100M-D	7.1 A	10 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	52.3 mOhm	6545	4.3 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-1R0M-D	17.9 A	1 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	5.6 mOhm	6545	13.3 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-150M-D	4.6 A	15 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	72 mOhm	6545	3.7 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-470M-D	3 A	47 µH	0.177 in	20 %	Surface Mount	100 kHz	0.256 in	0.276 in	155 °C	-55 °C	Drum Core Wirewound	AEC-Q200	229 mOhm	6545	2.1 A	Metal Composite	Shielded	Nonstandard
