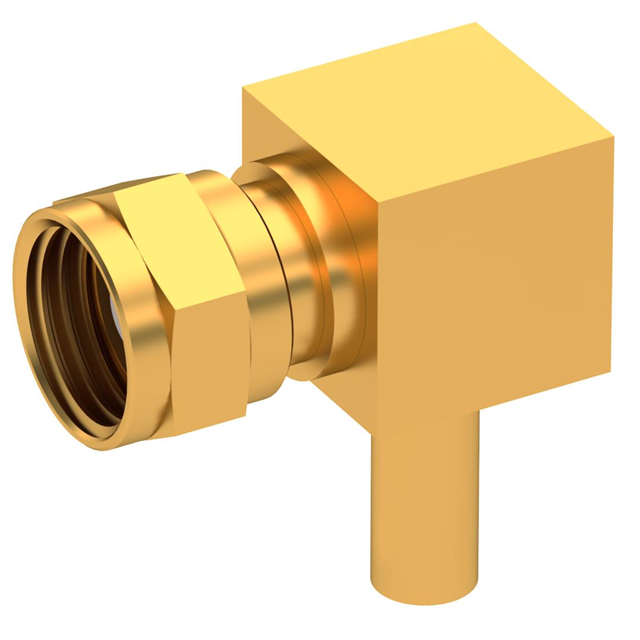

1715-1521-003

Active

Radiall USA, Inc.

75OHM F RA NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

75OHM F RA NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	1715-1521-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Crimp

Part	Fastening Type	Shield Termination	Center Contact Plating	Connector Type	Housing Color	Cable Group	Mounting Type	Number of Ports	Center Contact Material	Body Finish	Body Material	Impedance	Dielectric Material	Contact Termination
Radiall USA, Inc. 1715-1521-003	Snap-On	Crimp	Gold	Female Socket Plug	Gold	RG-316	Free Hanging (In-Line) Right Angle	1	Beryllium Copper	Gold	Brass	75 Ohms	Polytetrafluoroethylene (PTFE)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line), Right Angle Crimp

Technical documentation and resources

No documents available
