Q-1Z04100011.5M

Active

Amphenol Custom Cable

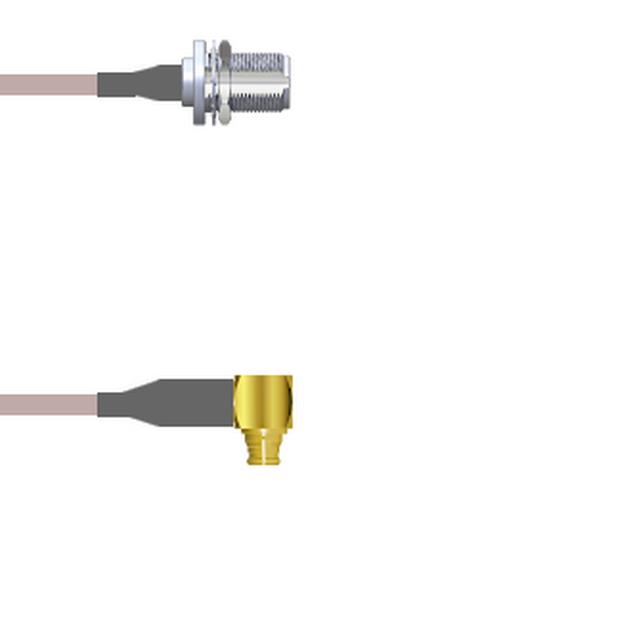

CBL ASSY SMP-NTYPE PLG-JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z04100011.5M

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLG-JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z04100011.5M

1st Connector	SMP Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-1Z0410 Series

Part	2nd Contact Gender	Overall Impedance	Features	1st Connector Mounting Type	2nd Connector Mounting Feature	2nd Connector	2nd Connector Mounting Type	Cable Type	Style	1st Connector	1st Contact Gender	Color	Frequency - Max [Max]	Length	Length	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-1Z0410001003i	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	3 in	76.2 mm
Amphenol Custom Cable Q-1Z0410001036i	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	36 in	91.44 cm
Amphenol Custom Cable Q-1Z0410001012i	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	12 "	304.8 mm
Amphenol Custom Cable Q-1Z04100010.5M	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	19.69 "	50 cm
Amphenol Custom Cable Q-1Z0410001018i	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz			457.2 mm	457.2 mm
Amphenol Custom Cable Q-1Z0410001006i	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	6 in	152.4 mm
Amphenol Custom Cable Q-1Z0410001072i	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	72 in	1.8 m			6 ft
Amphenol Custom Cable Q-1Z0410001002M	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	78.7 in	2 m			6.6 ft
Amphenol Custom Cable Q-1Z0410001009i	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	9 "	228.6 mm
Amphenol Custom Cable Q-1Z04100011.5M	Female	50 Ohms	Shielded	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	RG-178	SMP to N-Type	SMP Plug Right Angle	Male	Copper	11 GHz	59.1 in	1.5 m			4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 95.35
		25	$ 88.86
		50	$ 82.37
		100	$ 76.81
		250	$ 72.17

Description

General part information

Q-1Z0410 Series

Cable Assembly Coaxial SMP to N-Type RG-178 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
