M2032TY Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Current Rating	Switch Function	Actuator Type	Circuit	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Features	Voltage Rating - DC	Actuator Marking	Termination Style	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Mounting Type	Color - Actuator/Cap
NKK Switches M2032TYW01	25000	50000 Cycles	4 A 6 A	On-On	Actuator Arm Cap Required	3PDT	125 V	85 °C	-30 °C	CSA UL	Epoxy Sealed Terminals	30 V	Varies by Cap	Solder Lug	28.5 mm	Rectangular	16 mm	Flange Panel Mount

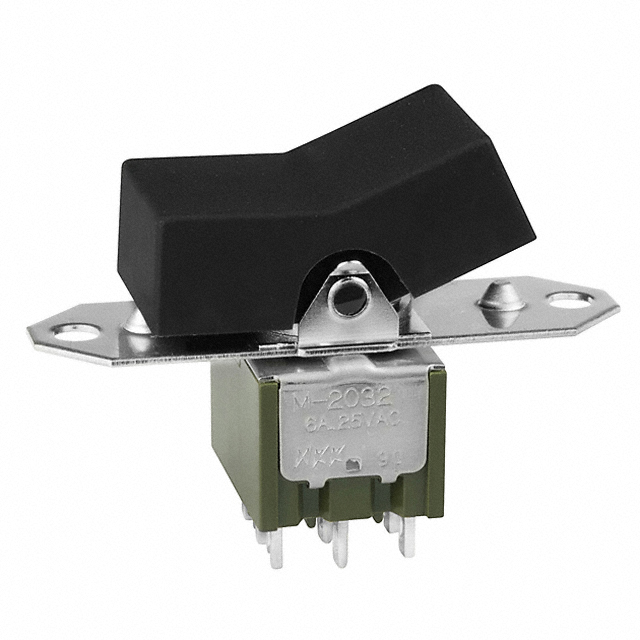

NKK Switches M2032TYW01-JA	25000	50000 Cycles	4 A 6 A	On-On	Concave (Standard V)	3PDT	125 V	85 °C	-30 °C	CSA UL	Epoxy Sealed Terminals	30 V	No Marking	Solder Lug	28.5 mm	Rectangular	16 mm	Flange Panel Mount	Black
NKK Switches M2032TYW01-HA	25000	50000 Cycles	4 A 6 A	On-On	Paddle	3PDT	125 V	85 °C	-30 °C	CSA UL	Epoxy Sealed Terminals	30 V	No Marking	Solder Lug	28.5 mm	Rectangular	16 mm	Flange Panel Mount	Black
NKK Switches M2032TYW01-JB	25000	50000 Cycles	4 A 6 A	On-On	Concave (Standard V)	3PDT	125 V	85 °C	-30 °C	CSA UL	Epoxy Sealed Terminals	30 V	No Marking	Solder Lug	28.5 mm	Rectangular	16 mm	Flange Panel Mount	White
