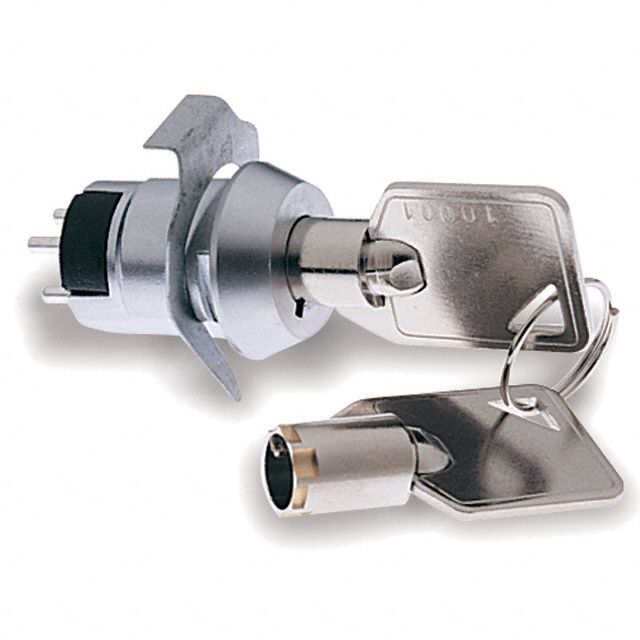

KO124C10001

Active

E-Switch

SWITCH KEYLOCK 2POS SPDT 2A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH KEYLOCK 2POS SPDT 2A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KO124C10001

Actuator Type	Tubular Key
Angle of Throw	90 °
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	2 A
Depth Behind Flange	27.7 mm
Key Removable Positions	All
Number of Positions	2
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Switch Function	Contact Timing	Contact Material	Depth Behind Flange	Voltage Rating - AC	Circuit	Actuator Type	Angle of Throw	Contact Finish	Key Removable Positions	Termination Style	Number of Positions	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
E-Switch KO124A10001	Off-On	Not Specified	Copper Alloy	27.7 mm	125 V	SPST	Tubular Key	90 °	Silver	All	Solder Lug	2	19 mm	2 A
E-Switch KO124C10001	On-On	Not Specified	Copper Alloy	27.7 mm	125 V	SPDT	Tubular Key	90 °	Silver	All	Solder Lug	2	19 mm	2 A
E-Switch KO124D10001	Off-On-On	Not Specified	Copper Alloy	27.7 mm	125 V	SPDT	Tubular Key	45 ° 90 °	Silver	All	Solder Lug		19 mm	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 6.99

General part information

Keylock Switch 2 Position SPDT 2A (AC) 125 VAC DC Panel Mount
