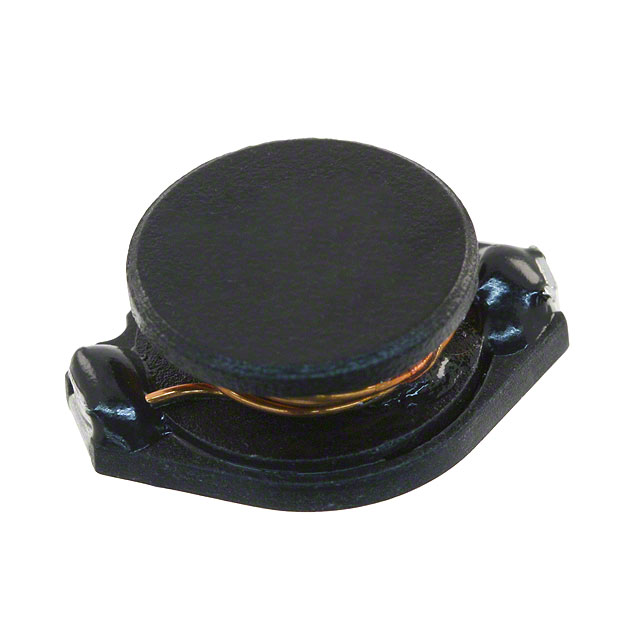

SDR1806-471KL
ActiveBourns Inc.
SURFACE MOUNT POWER INDUCTOR, SDR1806 SERIES, 470 H, 10%, UNSHIELDED, 0.82 OHM, 800 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SDR1806-471KL
ActiveBourns Inc.
SURFACE MOUNT POWER INDUCTOR, SDR1806 SERIES, 470 H, 10%, UNSHIELDED, 0.82 OHM, 800 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDR1806-471KL |
|---|---|
| Current Rating (Amps) | 800 mA |
| DC Resistance (DCR) [Max] | 820 mOhm |
| Frequency - Self Resonant | 3 MHz |
| Height - Seated (Max) [Max] [z] | 0.272 " |
| Height - Seated (Max) [Max] [z] | 6.9 mm |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 15, 796 kHz |
| Shielding | Unshielded |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
SDR1806 Series
| Part | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] | Shielding | Q @ Freq | Tolerance | Mounting Type | Current - Saturation (Isat) | Current Rating (Amps) | Frequency - Self Resonant | Inductance Frequency - Test | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Material - Core | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | 130 mOhm | Unshielded | 2.52 MHz 22 | 20 % | Surface Mount | 3.8 A | 2.1 A | 8 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | 68 µH | Ferrite | |
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | 6.8 mOhm | Unshielded | 7.96 MHz 22 | 20 % | Surface Mount | 22 A | 55 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | 2.2 µH | Ferrite | ||
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | Unshielded | 7.96 MHz 21 | 20 % | Surface Mount | 30 A | 10 A | 100 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | 1 µH | Ferrite | 4 mOhm | |
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | 820 mOhm | Unshielded | 15 796 kHz | 10 % | Surface Mount | 800 mA | 3 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | Ferrite | |||
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | 95 mOhm | Unshielded | 2.52 MHz 22 | 20 % | Surface Mount | 4.6 A | 2.5 A | 9 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | 47 µH | Ferrite | |
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | Unshielded | 23 796 kHz | 10 % | Surface Mount | 2.6 A | 1.4 A | 5 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | 150 µH | Ferrite | 270 mOhm | |
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | Unshielded | 7.96 MHz 22 | 20 % | Surface Mount | 9.4 A | 7 A | 27 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | 8.2 µH | Ferrite | 20 mOhm | |
Bourns Inc. | Drum Core Wirewound | 0.272 " | 6.9 mm | Unshielded | 20 796 kHz | 10 % | Surface Mount | 2.2 A | 1.1 A | 4.5 MHz | 100 kHz | Nonstandard | 125 °C | -40 °C | 220 µH | Ferrite | 420 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 0.97 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.69 | |||
| Tape & Reel (TR) | 250 | $ 0.63 | ||
| 500 | $ 0.60 | |||
| 750 | $ 0.56 | |||
| 1250 | $ 0.55 | |||
| 2500 | $ 0.53 | |||
| 6250 | $ 0.51 | |||
| 12500 | $ 0.49 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.85 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.72 | |||
Description
General part information
SDR1806 Series
470 µH Unshielded Drum Core, Wirewound Inductor 800 mA 820mOhm Max Nonstandard
