90112-AS

Active

Preci-Dip

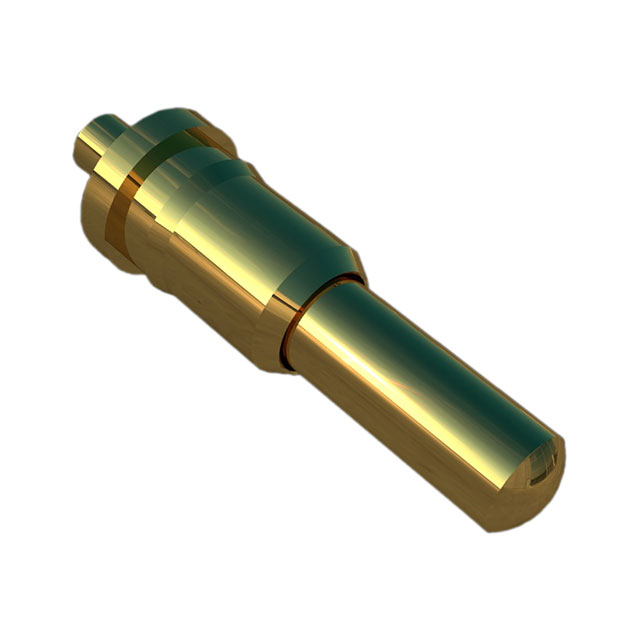

CONTACT SPRING LOADED SMD GOLD

Search across all available documentation for this part.

Active

Preci-Dip

CONTACT SPRING LOADED SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	90112-AS

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	0.217 in
Maximum Working Height [Max]	5.51 mm
Minimum Working Height [Min]	4.1 mm
Minimum Working Height [Min]	0.161 in
Mounting Type	Through Hole
Operating Force - Initial	25.49 gf
Operating Force - Mid Compression	61.18 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	1.83 mm
Pad Layout Dimension [diameter]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

CONTACT SPRING LOADED SMD GOLD

Part	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mating Cycles	Operating Force - Mid Compression	Contact Type	Contact Material	Operating Force - Initial	Contact Finish Thickness	Contact Finish Thickness	Maximum Working Height [Max]	Maximum Working Height [Max]	Mounting Type	Plunger Size [diameter]	Plunger Size [diameter]	Current Rating (Amps)	Minimum Working Height [Min]	Minimum Working Height [Min]
Preci-Dip 90112-AS	1.83 mm	0.072 in	-55 °C	125 °C	Gold	40000	61.18 gf	Sleeve & Plunger (Pogo Pins)	Brass Alloy	25.49 gf	0.51 µm	20 µin	0.217 in	5.51 mm	Through Hole	0.042 in	1.07 mm	3 A	4.1 mm	0.161 in
