Q-2I01I0003003M

Active

Amphenol Custom Cable

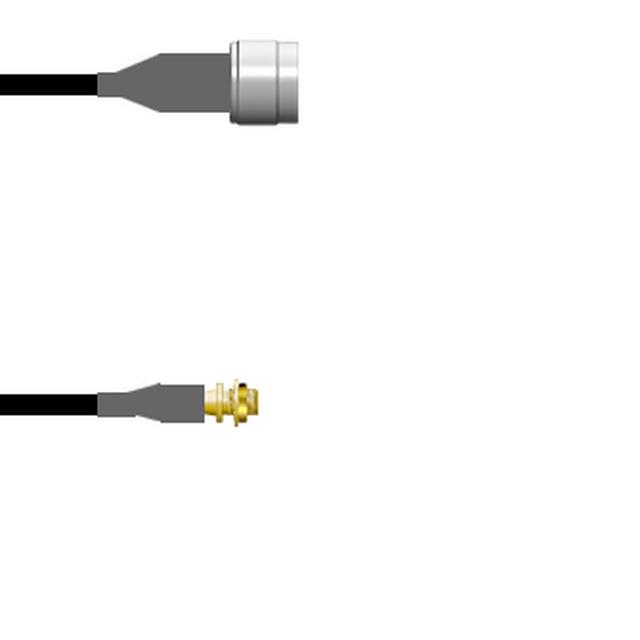

CBL ASSY MMCX-NTYPE JCK-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I01I0003003M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JCK-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I01I0003003M

1st Connector	MMCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2I01I0 Series

Part	Frequency - Max [Max]	Style	1st Contact Gender	1st Connector	1st Connector Mounting Type	Overall Impedance	Color	Cable Type	2nd Contact Gender	Features	2nd Connector	1st Connector Mounting Feature	Length	Length	2nd Connector Mounting Type	Length
Amphenol Custom Cable Q-2I01I0003006i	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Black	RG-174	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	152.4 mm	6 in	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I01I0003012i	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Black	RG-174	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	304.8 mm	12 "	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I01I0005084i	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Copper	RG-316	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	2.1 m	84 in	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-2I01I00031.5M	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Black	RG-174	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	1.5 m	59.1 in	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-2I01I0003003i	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Black	RG-174	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	76.2 mm	3 in	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I01I0005.75M	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Copper	RG-316	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	750 mm	29.53 "	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I01I0003108i	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Black	RG-174	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	2.7 m	108 in	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-2I01I0003002M	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Black	RG-174	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	2 m	78.7 in	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-2I01I0005036i	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Copper	RG-316	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	91.44 cm	36 in	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I01I0003003M	6000 MHz	MMCX to N-Type	Female	MMCX Jack	Panel Mount	50 Ohms	Black	RG-174	Male	Shielded	N-Type Plug	Bulkhead - Front Side Nut	3 m	118.1 in	Free Hanging (In-Line)	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 121.80
		25	$ 113.46
		50	$ 105.13
		100	$ 97.99
		250	$ 92.03

Description

General part information

Q-2I01I0 Series

Cable Assembly Coaxial MMCX to N-Type RG-174 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
