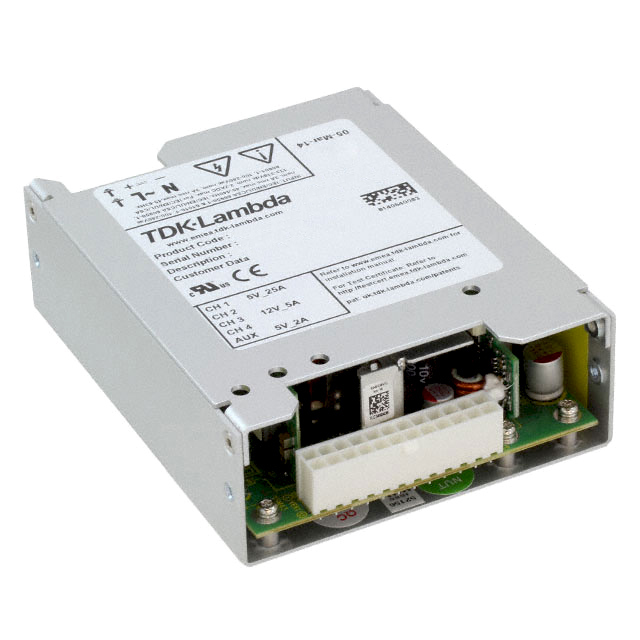

NV1-350TT-C

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, LABORATORY EQUIPMENT & MEDICAL, 3 OUTPUTS, 125 W, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

NV1-350TT-C

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, LABORATORY EQUIPMENT & MEDICAL, 3 OUTPUTS, 125 W, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NV1-350TT-C

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	25 A
Current - Output 2	5 A
Efficiency	90 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	175 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3.7 in
Size / Dimension [y]	94 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.3 kV
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

NV1-350 Series

Part	Operating Temperature [Max]	Current - Output 1	Mounting Type	Voltage - Output 3	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Applications	Efficiency	Voltage - Output 2	Features	Voltage - Isolation	Current - Output 2	Type	Voltage - Output 1	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]
TDK-LAMBDA NV1-350FF-N	70 °C	25 A	Chassis Mount	-15 V	175 W	90 VAC	264 VAC	3	ITE (Commercial) Medical	90 %	15 V	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	4.3 kV	5 A	Open Frame	5 V	CE	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm
TDK-LAMBDA NV1-350FF	70 °C	25 A	Chassis Mount	-15 V	175 W	90 VAC	264 VAC	3	ITE (Commercial) Medical	90 %	15 V	Adjustable Output PFC Remote Sense Universal Input	4.3 kV	5 A	Open Frame	5 V	CE	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm
TDK-LAMBDA NV1-350FF-C	70 °C	25 A	Chassis Mount	-15 V	175 W	90 VAC	264 VAC	3	ITE (Commercial) Medical	90 %	15 V	Adjustable Output PFC Remote Sense Universal Input	4.3 kV	5 A	Enclosed	5 V	CE	3.7 in	1.25 "	94 mm	5 in	31.8 mm	127 mm
TDK-LAMBDA NV1-350TT-N-C	70 °C	25 A	Chassis Mount	-12 V	175 W	90 VAC	264 VAC	3	ITE (Commercial) Medical	90 %	12 V	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	4.3 kV	5 A	Enclosed	5 V	CE	3.7 in	1.25 "	94 mm	5 in	31.8 mm	127 mm
TDK-LAMBDA NV1-350TT-C	70 °C	25 A	Chassis Mount	-12 V	175 W	90 VAC	264 VAC	3	ITE (Commercial) Medical	90 %	12 V	Adjustable Output PFC Remote Sense Universal Input	4.3 kV	5 A	Enclosed	5 V	CE	3.7 in	1.25 "	94 mm	5 in	31.8 mm	127 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 228.20
		10	$ 213.80
		25	$ 200.50
		50	$ 196.63
Newark	Each	1	$ 228.20
		10	$ 213.80
		25	$ 200.50
		50	$ 190.53

Description

General part information

NV1-350 Series

NV1-350TT-C is a NV-Power NV-175 series configurable AC/DC power supply.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
