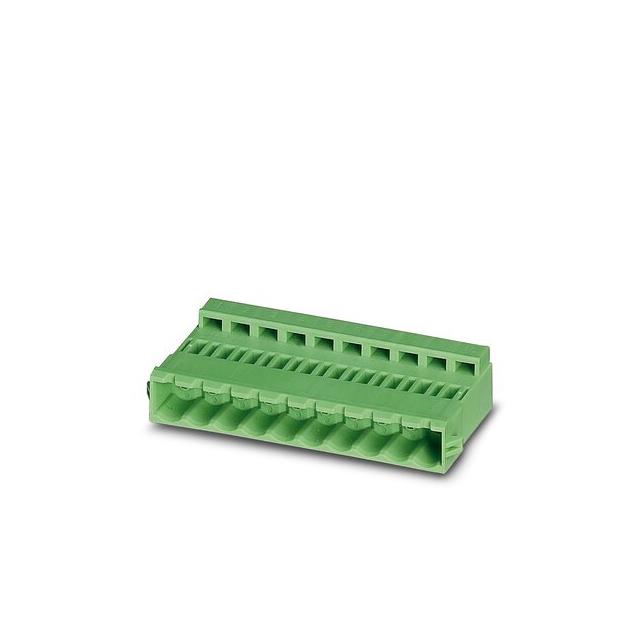

Pluggable Terminal Blocks 5 Pos 5.08mm Invert Plug 20-14AWG Crimp
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1823969 | ICC Series |
|---|---|---|
| Color | Green | Green |
| Current - IEC | 12 A | 12 A |
| Current - UL | 10 A | 10 A |
| Features | Locking Ramp | Mating Flange, Locking Ramp |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 10.6 mm | 10.6 mm |
| Insulation Height | 0.417 in | 0.417 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 14 | 14 |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Positions Per Level | 14 | 5 - 14 |
| Type | Plug Housing for Male Pins | Plug Housing for Male Pins |
| Voltage - IEC | 630 V | 630 V |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 20 AWG | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG | 14 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² | 0.5 mm² |
Pluggable Terminal Blocks 5 Pos 5.08mm Invert Plug 20-14AWG Crimp
| Part | Number of Levels | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Voltage - IEC | Pitch [x] | Pitch [x] | Mounting Type | Housing Material | Features | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Voltage - UL | Material Flammability Rating | Positions Per Level | Type | Current - IEC | Color | Current - UL | Insulation Height | Insulation Height | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1823419 | 1 | 2.5 mm² | 0.5 mm² | 630 V | 0.2 in | 5.08 mm | Free Hanging (In-Line) | Polyamide (PA), Nylon | Mating Flange | 20 AWG | 14 AWG | 300 V | UL94 V-0 | 5 | Plug Housing for Male Pins | 12 A | Green | 10 A | 10.6 mm | 0.417 in | |
Phoenix Contact 1823969 | 1 | 2.5 mm² | 0.5 mm² | 630 V | 0.2 in | 5.08 mm | Free Hanging (In-Line) | Polyamide (PA), Nylon | Locking Ramp | 20 AWG | 14 AWG | 300 V | UL94 V-0 | 14 | Plug Housing for Male Pins | 12 A | Green | 10 A | 10.6 mm | 0.417 in | 14 |
