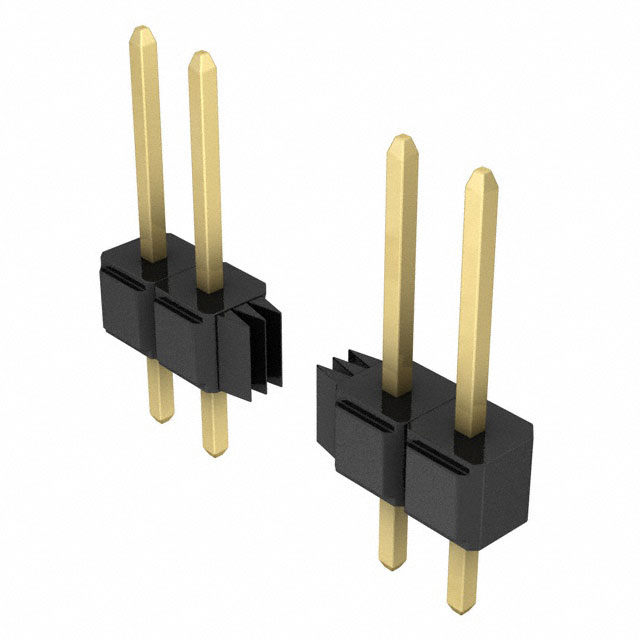

929450-01-25-I

Active

3M (TC)

80001330135 929450-01-25-I=25/HDR/PS/1R/ST/.295/ST .130/10 AVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929450-01-25-I

Active

3M (TC)

80001330135 929450-01-25-I=25/HDR/PS/1R/ST/.295/ST .130/10 AVE

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929450-01-25-I

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.535 in
Overall Contact Length	13.59 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929450 Series

Part	Contact Material	Number of Rows	Current Rating (Amps)	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Material Flammability Rating	Insulation Material	Contact Finish - Post	Fastening Type	Termination	Contact Type	Insulation Color	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
3M (TC) 929450-01-03-EU	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C
3M (TC) 929450-01-27-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C	27
3M (TC) 929450-01-24-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C	24
3M (TC) 929450-01-12-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C	12
3M (TC) 929450-01-36-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C	36
3M (TC) 929450-01-13-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C	13
3M (TC) 929450-01-32-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C
3M (TC) 929450-01-05-EU	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C
3M (TC) 929450-01-14-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C	14
3M (TC) 929450-01-25-I	Copper Alloy	1	2.5 A	Unshrouded	10 çin	0.25 çm	10 çin	0.25 çm	Square	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	Push-Pull	Solder	Male Pin	Black	Gold	7.49 mm	0.295 in	0.535 in	13.59 mm	All	0.13 in	3.3 mm	Through Hole	Breakaway Header	0.1 in	2.54 mm	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.66
		10	$ 6.03
		100	$ 5.28
		500	$ 4.44
		1000	$ 3.89
Newark	Each	250	$ 5.05
		500	$ 4.69
		1000	$ 4.41

Description

General part information

929450 Series

Connector Header Through Hole 25 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
