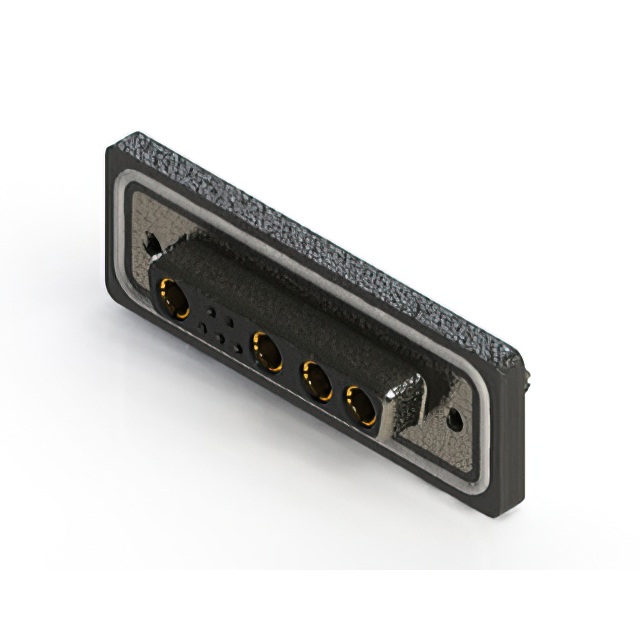

CONN D-SUB RCPT 9P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W9W4-124-1ND

Active

EDAC Inc.

CONN D-SUB RCPT 9P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W9W4-124-1ND

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock
Flange Feature	Board Side (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder
Voltage Rating	125 VDC

628-W9W Series

Part	Shell Material, Finish	Ingress Protection	Contact Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Material Flammability Rating	Dielectric Material	Current Rating (Amps)	Color	Contact Material	Flange Feature	Voltage Rating	Features	Connector Type	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Connector Style	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 628W9W4-124-1ND	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4	0.127 µm	5 µin	2	Solder	-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	10A 5A	Black	Copper Alloy	Board Side (M3)	125 VDC	Board Lock Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub
EDAC Inc. 628W9W4-222-1NA	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4			2		-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	10A 5A	Black	Copper Alloy	Housing/Shell (M3)	125 VDC	Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub	Flash
EDAC Inc. 628W9W4-124-3N5	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4	0.127 µm	5 µin	2	Solder	-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	4-40 Board Side	125 VDC	Board Lock Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub		5 A 30 A
EDAC Inc. 628W9W4-224-2NA	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4			2	Solder	-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	Housing/Shell (M3)	125 VDC	Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub	Flash	5 A 20 A
EDAC Inc. 628W9W4-124-2ND	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4	0.127 µm	5 µin	2	Solder	-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	Board Side (M3)	125 VDC	Board Lock Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub		5 A 20 A
EDAC Inc. 628W9W4-124-4NA	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4	0.127 µm	5 µin	2	Solder	-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	Housing/Shell (M3)	125 VDC	Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub		5 A 40 A
EDAC Inc. 628W9W4-222-4NA	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4			2		-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	Housing/Shell (M3)	125 VDC	Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub	Flash	5 A 40 A
EDAC Inc. 628W9W4-222-2N2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4			2		-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	Housing/Shell (4-40)	125 VDC	Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub	Flash	5 A 20 A
EDAC Inc. 628W9W4-224-2N2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4			2	Solder	-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	Housing/Shell (4-40)	125 VDC	Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub	Flash	5 A 20 A
EDAC Inc. 628W9W4-224-2ND	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Signal and Power	3 (DB B) - 9W4			2	Solder	-25 °C	85 °C	Gold	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		Black	Copper Alloy	Board Side (M3)	125 VDC	Board Lock Shielded	Receptacle Female Sockets	Panel Mount Through Hole	4	5	9	Combo D-Sub	Flash	5 A 20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 15.13

Description

General part information

628-W9W Series

9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
