DG202BDJ

Obsolete

Vishay Siliconix

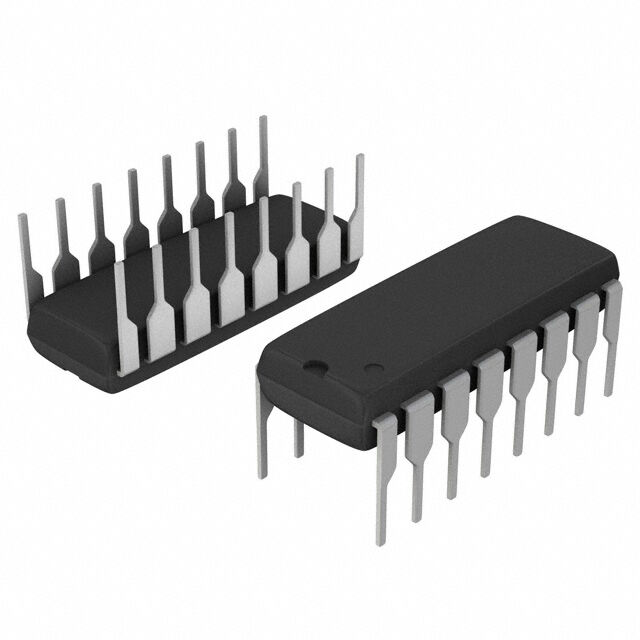

IC SWITCH SPST-NOX4 85OHM 16DIP

Deep-Dive with AI

Search across all available documentation for this part.

DG202BDJ

Obsolete

Vishay Siliconix

IC SWITCH SPST-NOX4 85OHM 16DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DG202 Series

4 Circuit IC Switch 1:1 85Ohm 16-PDIP

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DG202BDJ	DG202 Series

Channel Capacitance (CS(off), CD(off)) [custom]	5 pF	5 pF
Channel Capacitance (CS(off), CD(off)) [custom]	5 pF	5 pF
Charge Injection	1 pC	1 pC
Crosstalk	-95 dB	-95 dB
Current - Leakage (IS(off)) (Max)	500 pA	500 pA
Mounting Type	Through Hole	Through Hole, Surface Mount
Multiplexer/Demultiplexer Circuit	1:1	1:1
Number of Circuits	4	4
On-State Resistance (Max) [Max]	85 Ohm	85 Ohm
Operating Temperature	-	125 °C
Operating Temperature	-	-55 °C
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	0.3 in	0.3 in
Package / Case	16-DIP	16-CDIP, 16-DIP, 16-SOIC, 16-TSSOP
Package / Case	7.62 mm	7.62 mm
Package / Case	-	0.3 - 7.62 mm
Package / Case	-	0.154 - 0.173 in
Package / Case	-	3.9 - 4.4 mm
Supplier Device Package	16-PDIP	16-CERDIP, 16-PDIP, 16-SOIC, 16-TSSOP
Switch Circuit	SPST - NO	SPST - NO
Switch Time (Ton, Toff) (Max) [custom]	200 ns	200 ns
Switch Time (Ton, Toff) (Max) [custom]	300 ns	300 ns
Voltage - Supply, Dual (V±) [Max]	22 V, 4.5 V	4.5 - 22 V
Voltage - Supply, Dual (V±) [Min]	-4.5 V	-4.5 V
Voltage - Supply, Single (V+) [Max]	25 V	25 V
Voltage - Supply, Single (V+) [Min]	4.5 V	4.5 V

DG202 Series

IC SW SPST-NOX4 85OHM 16CERDIP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Dual (V±) [Min]	Voltage - Supply, Dual (V±) [Max]	Package / Case	Package / Case	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Number of Circuits	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	On-State Resistance (Max) [Max]	Switch Circuit	Mounting Type	Charge Injection	Supplier Device Package	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Multiplexer/Demultiplexer Circuit	Current - Leakage (IS(off)) (Max)	Package / Case	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]
Vishay Siliconix DG202BDK	85 °C	-40 °C	-4.5 V	4.5 V, 22 V	0.3 in, 7.62 mm	16-CDIP	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Through Hole	1 pC	16-CERDIP	200 ns	300 ns	-95 dB	1:1	500 pA
Vishay Siliconix DG202BDJ-E3	85 °C	-40 °C	-4.5 V	4.5 V, 22 V		16-DIP	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Through Hole	1 pC	16-PDIP	200 ns	300 ns	-95 dB	1:1	500 pA	0.3 in	7.62 mm
Vishay Siliconix DG202BDY	85 °C	-40 °C	-4.5 V	4.5 V, 22 V		16-SOIC	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Surface Mount	1 pC	16-SOIC	200 ns	300 ns	-95 dB	1:1	500 pA			0.154 in	3.9 mm
Vishay Siliconix DG202BAK-E3			-4.5 V	4.5 V, 22 V	0.3 in, 7.62 mm	16-CDIP	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Through Hole	1 pC	16-CERDIP	200 ns	300 ns	-95 dB	1:1	500 pA					125 °C	-55 °C
Vishay Siliconix DG202BDQ-E3	85 °C	-40 °C	-4.5 V	4.5 V, 22 V		16-TSSOP	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Surface Mount	1 pC	16-TSSOP	200 ns	300 ns	-95 dB	1:1	500 pA			0.173 in	4.4 mm
Vishay Siliconix DG202BDJ	85 °C	-40 °C	-4.5 V	4.5 V, 22 V		16-DIP	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Through Hole	1 pC	16-PDIP	200 ns	300 ns	-95 dB	1:1	500 pA	0.3 in	7.62 mm
Vishay Siliconix DG202BDY-T1-E3	85 °C	-40 °C	-4.5 V	4.5 V, 22 V		16-SOIC	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Surface Mount	1 pC	16-SOIC	200 ns	300 ns	-95 dB	1:1	500 pA			0.154 in	3.9 mm
Vishay Siliconix DG202BDQ-T1-E3	85 °C	-40 °C	-4.5 V	4.5 V, 22 V		16-TSSOP	5 pF	5 pF	4	4.5 V	25 V	85 Ohm	SPST - NO	Surface Mount	1 pC	16-TSSOP	200 ns	300 ns	-95 dB	1:1	500 pA			0.173 in	4.4 mm
