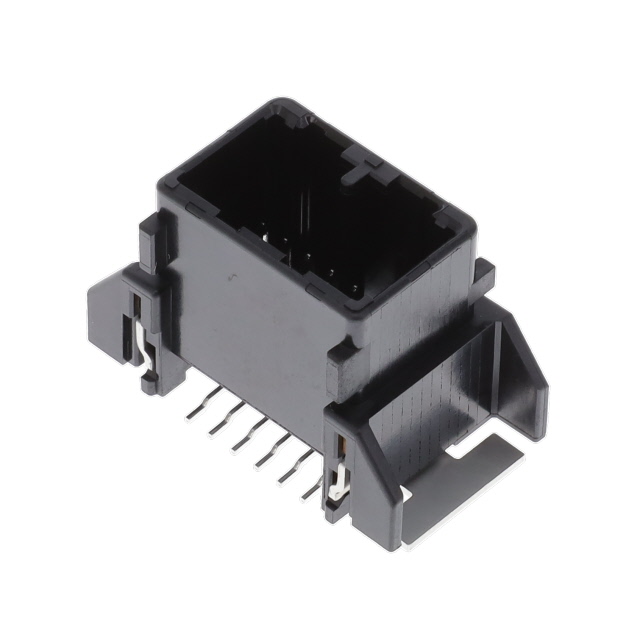

MX34R12VF1

Active

JAE Electronics

CONN HEADER SMD 12POS 2.2MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD 12POS 2.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX34R12VF1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.283 in
Contact Length - Mating	7.19 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	0.768 "
Insulation Height	19.5 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Connector Type	Number of Rows	Number of Positions Loaded	Termination	Contact Shape	Features	Insulation Height	Insulation Height	Shrouding	Style	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Contact Material	Contact Length - Mating	Contact Length - Mating	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insulation Material	Insulation Color	Fastening Type	Number of Positions
JAE Electronics MX34R12VF1	Header	2	All	Solder	Square	Board Guide Solder Retention	0.768 "	19.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	Surface Mount	3 mm	0.118 in	0.087 in	2.2 mm	Tin	Male Pin	Copper Alloy	0.283 in	7.19 mm	Automotive	85 °C	-40 °C	3 A	Polyphenylene Sulfide (PPS) Glass Filled	Black	Locking Ramp	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 12 position 0.087" (2.20mm)
