2208165-1

Active

TE Connectivity Raychem Cable Protection

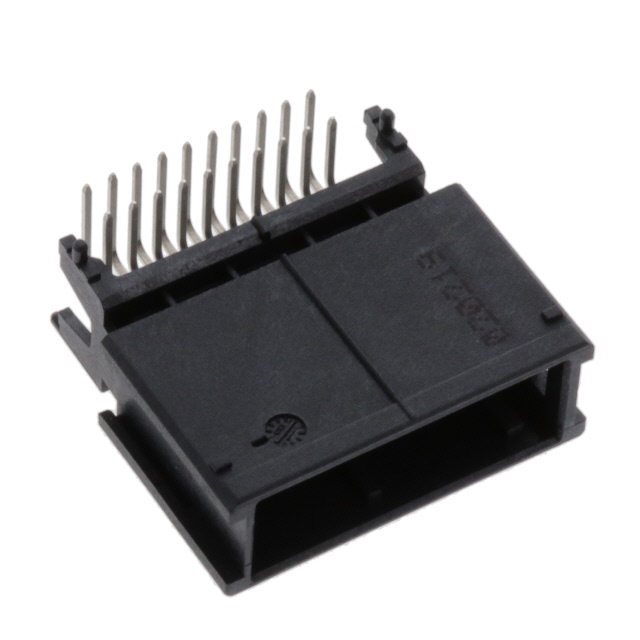

20POS,NANO MQS,HEADER ASSY,CODA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2208165-1

Active

TE Connectivity Raychem Cable Protection

20POS,NANO MQS,HEADER ASSY,CODA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2208165-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.5 mm
Contact Length - Mating	0.256 in
Contact Length - Post	2.35 mm
Contact Length - Post	0.093 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.071 in
Pitch - Mating	1.8 mm
Row Spacing - Mating [x]	1.5 mm
Row Spacing - Mating [x]	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Nano MQS Series

Part	Pin or Socket	Type	Contact Termination	Contact Finish	Contact Length - Mating	Contact Length - Mating	Fastening Type	Connector Type	Shrouding	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Style	Contact Shape	Termination	Contact Material	Number of Positions Loaded	Features	Number of Rows	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection 1-2208636-1
TE Connectivity Raychem Cable Protection 2208339-1
TE Connectivity Raychem Cable Protection 1-2291853-1	Socket	Stamped	Crimp	Tin
TE Connectivity Raychem Cable Protection 1-2208165-2
TE Connectivity Raychem Cable Protection 2208340-1
TE Connectivity Raychem Cable Protection 1-2177766-3
TE Connectivity Raychem Cable Protection 2282150-1
TE Connectivity Raychem Cable Protection 2208165-1					6.5 mm	0.256 in	Latch Holder	Header	Shrouded - 4 Wall	9 mm	0.354 in	Tin	20	Board to Cable/Wire	Square	Solder	Copper Alloy	All	Board Guide	2	2.35 mm	0.093 in	Panel Mount Right Angle Through Hole	Black	1.5 mm	0.059 in	0.071 in	1.8 mm	Male Pin
TE Connectivity Raychem Cable Protection 2-1703930-2	Tab	Stamped	Crimp	Silver																										24 AWG	22 AWG	196.9 µin	5 µm
TE Connectivity Raychem Cable Protection 2177586-1			Crimp				Latch Holder	Receptacle					8						Terminal Position Lock (TPA)	2			Free Hanging (In-Line)						Female Socket					Black	0.071 in	1.8 mm	0.232 in	5.9 mm	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C
