MF-R1100-0-99

Obsolete

Bourns Inc.

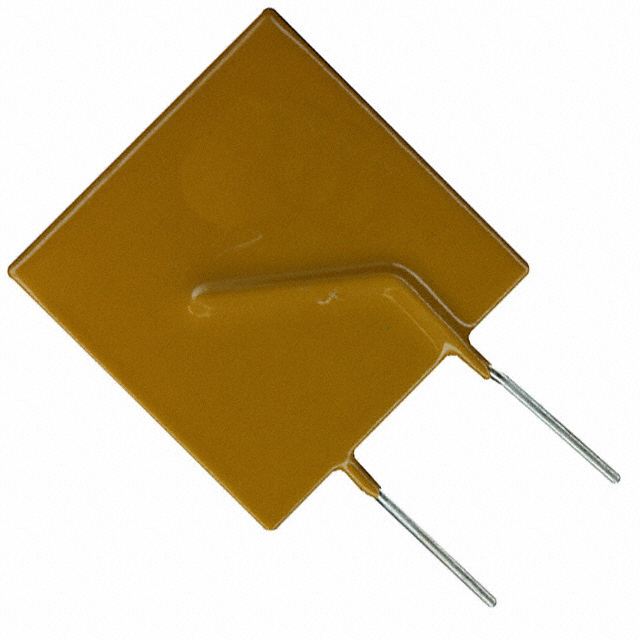

PTC RESET FUSE 16V 11A RADIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 16V 11A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R1100-0-99

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max)	11 A
Current - Max [Max]	100 A
Current - Trip (It)	22 A
Height - Seated (Max) [Max] [z]	1.295 in
Height - Seated (Max) [Max] [z]	32.9 mm
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	3 mOhms
Resistance - Post Trip (R1) (Max) [Max]	14 mOhms
Size / Dimension [x]	0.953 in
Size / Dimension [x]	24.2 mm
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Time to Trip	20 s
Type	Polymeric
Voltage - Max [Max]	16 V

Part	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Hold (Ih) (Max)	Mounting Type	Approval Agency	Type	Current - Max [Max]	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Bourns Inc. MF-R1100-0-99	22 A	3 mOhms	Disc Radial	1.295 in	32.9 mm	0.118 in	0.953 in	3 mm	24.2 mm	11 A	Through Hole	cURus TUV	Polymeric	100 A	20 s	14 mOhms	16 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 16V 11 A Ih Through Hole Radial, Disc
