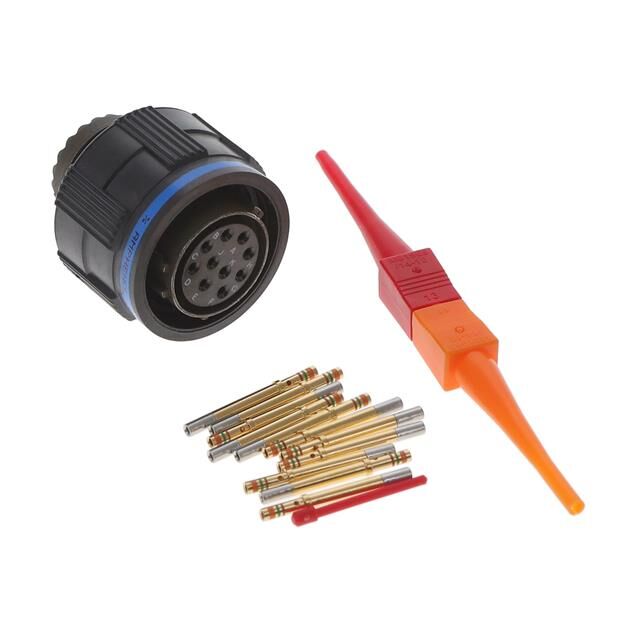

D38999/26FC98PN
ActiveGlenair
CONN CIRCULAR PIN 10 POS CRIMP ST CABLE MOUNT 10 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/26FC98PN
ActiveGlenair
CONN CIRCULAR PIN 10 POS CRIMP ST CABLE MOUNT 10 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/26FC98PN | D38999/26FC Series |
|---|---|---|
| - | - | |
| Applications | Military, Medical, Automotive, Aerospace | Aerospace, Military, Medical, Automotive |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Plug Housing, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper, Copper Alloy | Copper, Copper Alloy |
| Contact Type | - | Crimp |
| Features | Self Locking | Self Locking |
| Grade | Military | Military |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 10 | 8 - 22 positions |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 | MIL-DTL-38999 |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 13 | 13 |
| Shell Size, MIL | C | C |
| Termination | Crimp | Crimp |
| Type | - | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
D38999/26FC Series
CONN CIRCULAR PIN 10 POS CRIMP ST CABLE MOUNT 10 TERMINAL 1 PORT
| Part | Shell Finish | Termination | Shell Size - Insert | Orientation | Contact Finish - Mating | Contact Material | Primary Material | Connector Type | Qualification | Shell Material | Number of Positions | Shell Size, MIL | Mounting Type | Applications | Grade | Note | Type | Contact Type | Ingress Protection | Features | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair D38999/26FC98PN | |||||||||||||||||||||||
Glenair D38999/26FC98PN | |||||||||||||||||||||||
Glenair D38999/26FC35SN | Electroless Nickel | Crimp | 13 | N | Gold | Copper | Metal | Female Sockets, Plug | MIL-DTL-38999 | Aluminum | 22 positions | C | Free Hanging (In-Line) | Aerospace | Military | ||||||||
Glenair D38999/26FC8AN | Electroless Nickel | 13 | N | Metal | Plug Housing | MIL-DTL-38999 | Aluminum | 8 | C | Free Hanging (In-Line) | Military | Contacts Not Included | For Male Pins | Crimp | |||||||||
Glenair D38999/26FC98PA | |||||||||||||||||||||||
Glenair D38999/26FC98PN | Electroless Nickel | Crimp | 13 | N | Gold | Copper, Copper Alloy | Metal | Male Pins, Plug | MIL-DTL-38999 | Aluminum | 10 | C | Free Hanging (In-Line) | Aerospace, Automotive, Medical, Military | Military | IP68 - Dust Tight, Waterproof | Self Locking | Thermoplastic | -65 ░C | 200 °C |
Description
General part information
D38999/26FC Series
10 Position Circular Connector Plug, Male Pins Crimp
Documents
Technical documentation and resources
