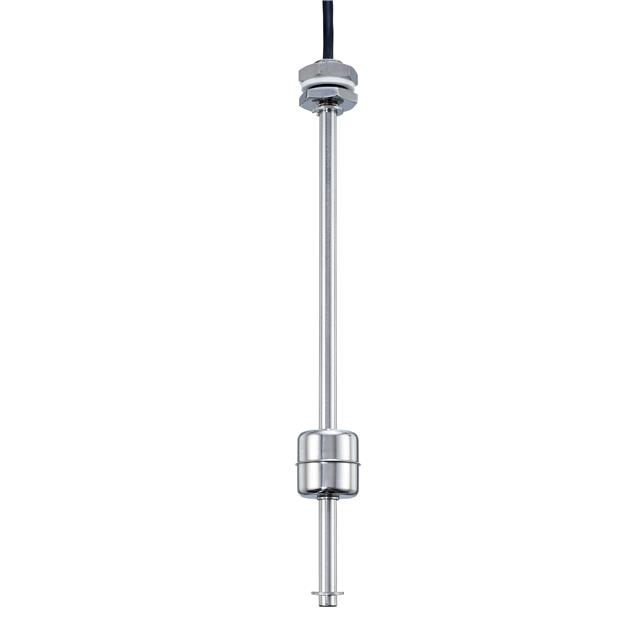

SSF67A25B75
ActiveSensata Technologies
SWITCH 2 LEVEL SS NO/NC .6A
Deep-Dive with AI
Search across all available documentation for this part.
SSF67A25B75
ActiveSensata Technologies
SWITCH 2 LEVEL SS NO/NC .6A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSF67A25B75 |
|---|---|
| Current | 600 mA |
| Material - Housing & Prism | 316 Stainless Steel |
| Minimum Liquid Specific Gravity [Min] | 0.8 |
| Mounting Type | M16x2 Thread, Panel Mount |
| Operating Temperature | 135 °C |
| Output Configuration | SPST-NC, SPST-NO |
| Output Type | Switch (2) (Single Float) |
| Switch Actuation Level | 0.984 in, 2.953 " |
| Switch Actuation Level | 75 mm, 25 mm |
| Type | Liquid |
| Voltage Rating | 120 VDC, 240 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 277.00 | |
Description
General part information
SSF67A25 Series
SWITCH 2 LEVEL SS NO/NC .6A
Documents
Technical documentation and resources
No documents available
