KD14.4101.151
ActiveUN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
KD14.4101.151
ActiveUN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KD14.4101.151 | KD14.4101 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Voltage Selector | Voltage Selector |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Flange | Panel Mount, Snap-In, Flange |
| Panel Cutout Dimensions [x] | 27.5 mm | 27.5 mm |
| Panel Cutout Dimensions [y] | 66.5 mm | 66.5 mm |
| Panel Thickness | - | 0.059 in |
| Panel Thickness | - | 1.5 mm |
| Panel Thickness | - | 2.5 mm |
| Panel Thickness | - | 0.098 in |
| Panel Thickness | - | 2 mm |
| Panel Thickness | - | 0.079 in |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.189 ", 4.8 mm | 0.189 - 4.8 " |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KD14.4101 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Approval Agency | Switch Features | Connector Style | Voltage Rating - Appliance Inlet | Mounting Type | Accomodates a Fuse | Panel Thickness [custom] | Panel Thickness [custom] | Ingress Protection | Termination | Termination | Current Rating - Appliance Inlet | Features | Material Flammability Rating | Filter Type | Fuse Holder, Drawer | Connector Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness [x] | Panel Thickness [x] | Panel Thickness | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KD14.4101.105 | CCC, CSA, ENEC, UL | Switch On-Off | IEC 320-C14 | 250 VAC | Panel Mount, Snap-In | 0.059 in | 1.5 mm | IP40 | 0.189 ", 4.8 mm | Quick Connect | 10 A | Voltage Selector | UL94 V-0 | Unfiltered - Commercial | Drawer Sold Separate | Receptacle, Male Blades - Module | 27.5 mm | 66.5 mm | |||||
SCHURTER Inc. KD14.4101.307 | CCC, CSA, ENEC, UL | Switch On-Off | IEC 320-C14 | 250 VAC | IP40 | 10 A | UL94 V-0 | Unfiltered - Commercial | Drawer Sold Separate | Receptacle, Male Blades - Module | 27.5 mm | 66.5 mm | |||||||||||
SCHURTER Inc. KD14.4101.151 | CCC, CSA, ENEC, UL | Switch On-Off | IEC 320-C14 | 250 VAC | Flange, Panel Mount | IP40 | 0.189 ", 4.8 mm | Quick Connect | 10 A | Voltage Selector | UL94 V-0 | Unfiltered - Commercial | Drawer Sold Separate | Receptacle, Male Blades - Module | 27.5 mm | 66.5 mm | |||||||
SCHURTER Inc. KD14.4101.109 | CCC, CSA, ENEC, UL | Switch On-Off | IEC 320-C14 | 250 VAC | Panel Mount, Snap-In | IP40 | 0.189 ", 4.8 mm | Quick Connect | 10 A | Voltage Selector | UL94 V-0 | Unfiltered - Commercial | Drawer Sold Separate | Receptacle, Male Blades - Module | 27.5 mm | 66.5 mm | 2.5 mm | 0.098 in | |||||
SCHURTER Inc. KD14.4101.107 | CCC, CSA, ENEC, UL | Switch On-Off | IEC 320-C14 | 250 VAC | Panel Mount, Snap-In | IP40 | 0.189 ", 4.8 mm | Quick Connect | 10 A | Voltage Selector | UL94 V-0 | Unfiltered - Commercial | Drawer Sold Separate | Receptacle, Male Blades - Module | 27.5 mm | 66.5 mm | 2 mm | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KD14.4101 Series

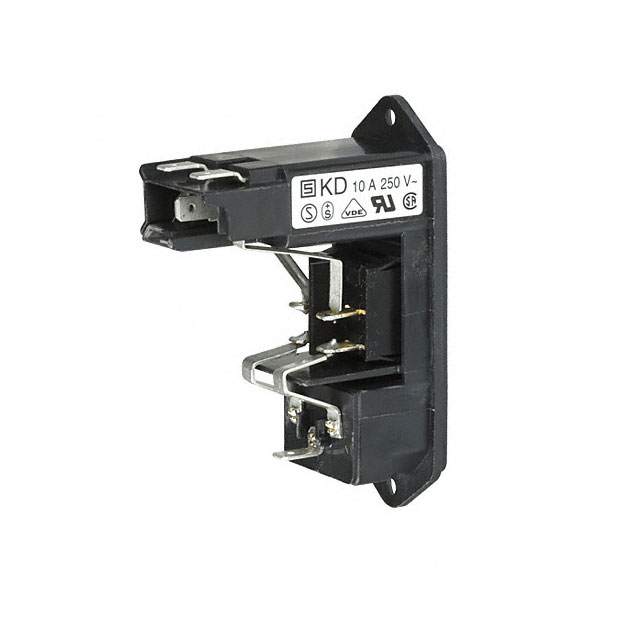

The KD14.4101.151 is a fused power Entry Module without line filter, UL94V-0 black thermoplastic housing. Appliance inlet protection class I, line switch 2-pole, fuse holder with interchangeable fuse drawer for fuse-links 5x20 or 6.3x32mm and quick connect terminals (4.8 x 0.8mm). Screw-on version from front or rear side, snap-in version from front side panel mount. Fuse drawer sold separately.
