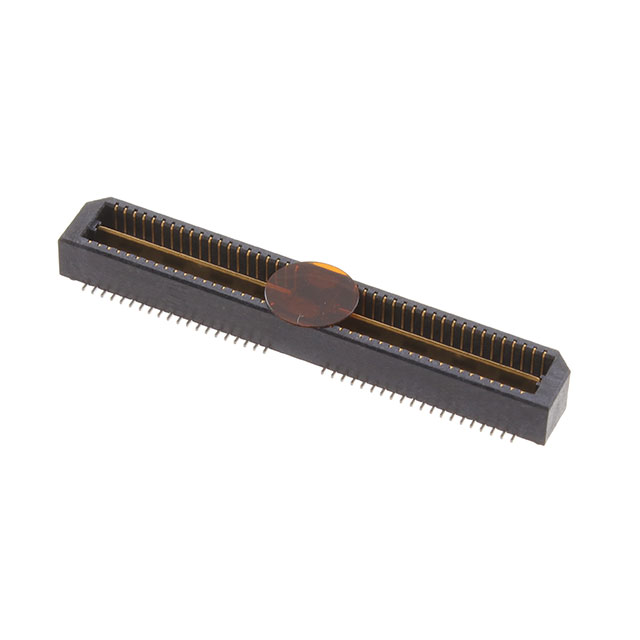

Specification	QTE-040-01-L-D-A-K-TR

Connector Type	Outer Shroud Contacts, Header
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Board Guide, Pick and Place, Ground Bus (Plane)
Height Above Board	0.168 in
Mated Stacking Height	5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch	0.031 in

QTE-040 Series

...

Part	Contact Finish Thickness	Mounting Type	Height Above Board	Mated Stacking Height	Number of Positions	Pitch	Number of Rows	Features	Connector Type	Contact Finish
Samtec Inc. QTE-020-03-L-D-K	10 Ąin	Surface Mount	0.404 in	11 mm	40	0.031 in	2	Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-04-L-D-A-K	10 Ąin	Surface Mount	0.6 in	16 mm	40	0.031 in	2	Board Guide Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-03-C-D-A	50 µin	Surface Mount	0.404 in	11 mm	40	0.031 in	2	Board Guide Ground Bus (Plane)	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-05-L-D-A-K	10 Ąin	Surface Mount	0.718 in	19 mm	40	0.031 in	2	Board Guide Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-05-F-D-LC	3 µin	Surface Mount	0.718 in	19 mm	40	0.031 in	2	Ground Bus (Plane) Locking Clip	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-04-L-D-LC	10 Ąin	Surface Mount	0.6 in	16 mm	40	0.031 in	2	Ground Bus (Plane) Locking Clip	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-01-H-D-A-L	30 µin	Surface Mount	0.168 in	5 mm	40	0.031 in	2	Board Guide Ground Bus (Plane) Latches	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-01-F-D-A-FL	3 µin	Surface Mount	0.168 in	5 mm	40	0.031 in	2	Board Guide Friction Lock Ground Bus (Plane)	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-06-F-D-A-K	3 µin	Surface Mount	0.837 in	22 mm	40	0.031 in	2	Board Guide Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	Gold
Samtec Inc. QTE-020-04-F-D-LC	3 µin	Surface Mount	0.6 in	16 mm	40	0.031 in	2	Ground Bus (Plane) Locking Clip	Header Outer Shroud Contacts	Gold
