QTE-020-04-L-D-A-K

Active

Samtec Inc.

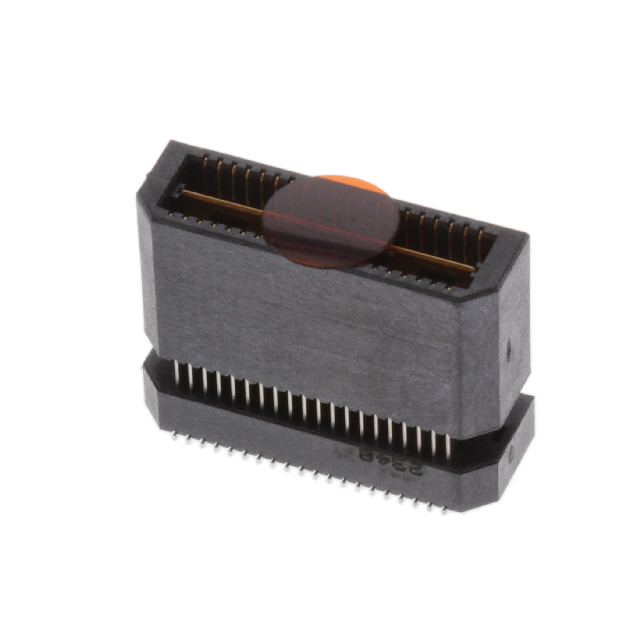

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQTE-014-01-F-D-DP Datasheet 02 Datasheet +1

QTE-020-04-L-D-A-K

Active

Samtec Inc.

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

DocumentsQTE-014-01-F-D-DP Datasheet 02 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTE-020-04-L-D-A-K

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	0.6 in
Height Above Board	15.24 mm
Mated Stacking Heights	16 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QTE-020 Series

Board to Board & Mezzanine Connectors Q Strip High-Speed Ground Plane Header, 0.80mm Pitch

...

Part	Contact Finish	Connector Type	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QTE-020-03-L-D-K	Gold	Header Outer Shroud Contacts	Surface Mount	Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	10.27 mm	0.404 in	2	0.8 mm	0.031 in	11 mm	40
Samtec Inc. QTE-020-04-L-D-A-K	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	15.24 mm	0.6 in	2	0.8 mm	0.031 in	16 mm	40
Samtec Inc. QTE-020-03-C-D-A	Gold	Header Outer Shroud Contacts	Surface Mount		50 µin	1.27 µm	10.27 mm	0.404 in	2	0.8 mm	0.031 in	11 mm	40
Samtec Inc. QTE-020-05-L-D-A-K	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	18.24 mm	0.718 in	2	0.8 mm	0.031 in	19 mm	40
Samtec Inc. QTE-020-05-F-D-LC	Gold	Header Outer Shroud Contacts	Surface Mount	Ground Bus (Plane) Locking Clip	3 Áin	0.076 Ám	18.24 mm	0.718 in	2	0.8 mm	0.031 in	19 mm	40
Samtec Inc. QTE-020-04-L-D-LC	Gold	Header Outer Shroud Contacts	Surface Mount	Ground Bus (Plane) Locking Clip	10 Áin	0.25 Ám	15.24 mm	0.6 in	2	0.8 mm	0.031 in	16 mm	40
Samtec Inc. QTE-060-10-F-D-A-TR	Gold	Header Outer Shroud Contacts	Surface Mount		3 Áin	0.076 Ám	14.37 mm	0.566 in	2	0.8 mm	0.031 in		120
Samtec Inc. QTE-020-01-H-D-A-L	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Latches	30 Áin	0.76 Ám			2	0.8 mm	0.031 in	5 mm	40
Samtec Inc. QTE-020-01-F-D-A-FL	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Friction Lock Ground Bus (Plane)	3 Áin	0.076 Ám			2	0.8 mm	0.031 in	5 mm	40
Samtec Inc. QTE-020-06-F-D-A-K	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	3 Áin	0.076 Ám			2	0.8 mm	0.031 in	22 mm	40	0.837 "	21.26 mm
