10082202-404-26LF

Active

Amphenol ICC (FCI)

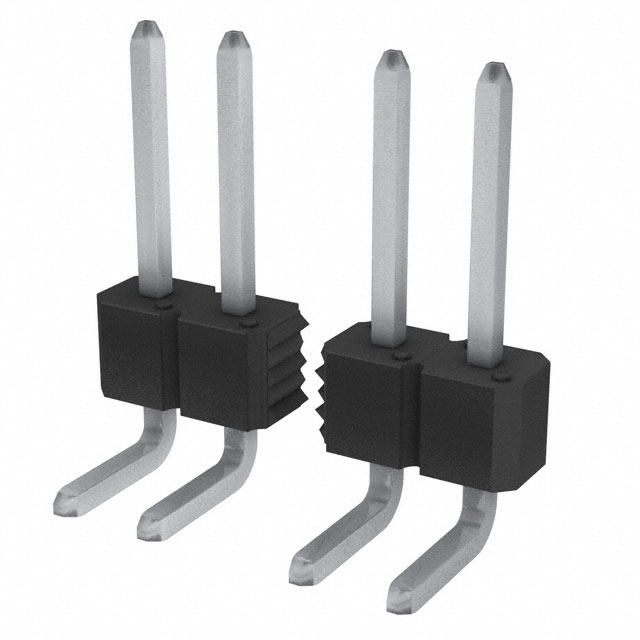

CONN HEADER R/A 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet bergstik productpresentation Other Related Document +1

10082202-404-26LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 26POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet bergstik productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10082202-404-26LF

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	0.266 in
Contact Length - Mating	6.75 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

10082202 Series

Part	Mounting Type	Contact Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Current Rating (Amps)	Contact Finish - Mating	Contact Shape	Connector Type	Features	Contact Length - Mating [x]	Contact Length - Mating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Termination	Material Flammability Rating	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating
Amphenol ICC (FCI) 10082202-101A06LF	Through Hole Right Angle	Phosphor Bronze	6	30 Áin	0.76 Ám	Unshrouded	3 A	Gold or Gold GXT™	Square	Breakaway Header	Pick and Place	0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	2.5 mm	0.098 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-101-10LF	Through Hole Right Angle	Phosphor Bronze	10	30 Áin	0.76 Ám	Unshrouded	3 A	Gold or Gold GXT™	Square	Breakaway Header		0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	2.5 mm	0.098 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-101-20LF	Through Hole Right Angle	Phosphor Bronze	20	30 Áin	0.76 Ám	Unshrouded	3 A	Gold or Gold GXT™	Square	Breakaway Header		0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	2.5 mm	0.098 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-404-26LF	Through Hole Right Angle	Phosphor Bronze	26	78.7 µin	2 µm	Unshrouded	3 A		Square	Breakaway Header			6.75 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	3 mm	0.118 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in	0.266 in
Amphenol ICC (FCI) 10082202-103-10LF	Through Hole Right Angle	Phosphor Bronze	10	30 Áin	0.76 Ám	Unshrouded	3 A	Gold or Gold GXT™	Square	Breakaway Header		0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	3 mm	0.118 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-103A20LF	Through Hole Right Angle	Phosphor Bronze	20	30 Áin	0.76 Ám	Unshrouded	3 A	Gold or Gold GXT™	Square	Breakaway Header	Pick and Place	0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	3 mm	0.118 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-103-12LF	Through Hole Right Angle	Phosphor Bronze	12	30 Áin	0.76 Ám	Unshrouded	3 A	Gold or Gold GXT™	Square	Breakaway Header		0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	3 mm	0.118 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-803-50LF	Through Hole Right Angle	Phosphor Bronze	50	15 µin	0.38 µm	Unshrouded	3 A	Gold	Square	Breakaway Header		0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	3 mm	0.118 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-401-06LF	Through Hole Right Angle	Phosphor Bronze	6	78.7 µin	2 µm	Unshrouded	3 A		Square	Breakaway Header		0.23 in	5.84 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	2.5 mm	0.098 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in
Amphenol ICC (FCI) 10082202-104A12LF	Through Hole Right Angle	Phosphor Bronze	12	30 Áin	0.76 Ám	Unshrouded	3 A	Gold or Gold GXT™	Square	Breakaway Header	Pick and Place		6.75 mm	Push-Pull	2.54 mm	0.1 in	All	Solder	UL94 V-0	Male Pin	3 mm	0.118 in	Thermoplastic	Tin	-65 ░C	130 °C	0.1 in	2.54 mm	2	2 çm	78.7 çin	Black	4.83 mm	0.19 in	0.266 in
